CA2KN22B7, Schneider Electric CA2KN Series Contactor, 10 A, 2NO + 2NC, 690 V ac, Реле

Schneider Electric | TeSys K Series | Control Relays

Creating seamless integration in all automation applications, compactness ratio and high performance, the TeSys K series is a range of reversing or non-reversing contactors. All 4 pole relays have 10A thermally rated contacts which are suitable for AC or DC control voltages. In addition the series also features low consumption coil versions with built in suppression which are suitable to be used with programmable controllers.

Features and Benefits:

• Common options available for all 6, 9, 12 A ratings
• AC and DC Control circuits available
• Low-consumption DC and silent
• Variety of auxiliary contacts, and timer modules
• Clamp terminals as standard with spring terminal, printed circuit board connection and fast-on connector types available
• Consistent connection tightness
• Power consumption for Vac types 4.5 VA
• Power consumption for Vdc types 2.4 W
• Resistance to vibration & temperature cycling
• Din or screw fixing

Protection ratings & Safety features:

• BS 5424, IEC 60947, NF C 63-140 and VDE 0660 standards
• CSA and UL certification
• IP2x protection
• TC conforming to IEC 60068

Applications - Ideal for Zones sensitive to noise, disturbed mains supplies, industry, building and infrastructure. Other applications include:
• Switching contactor or relay coils
• Powering control and signalling equipment
• Simple control systems

Note

Relays are positively guided.

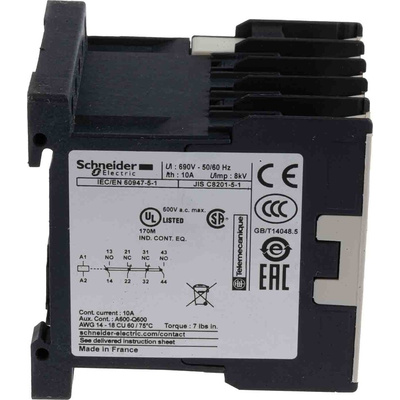

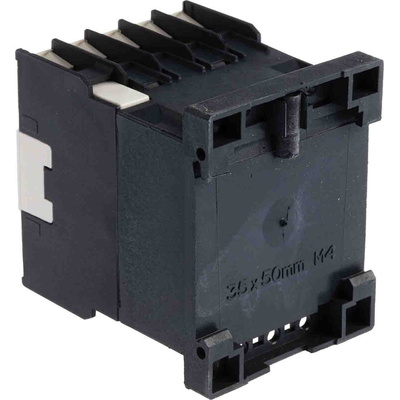

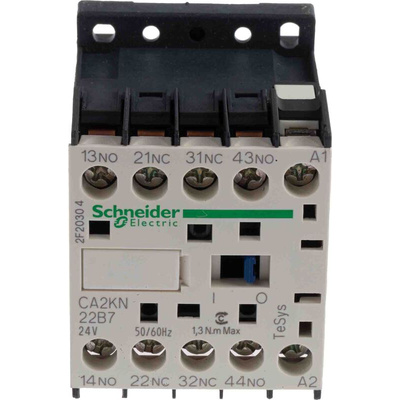

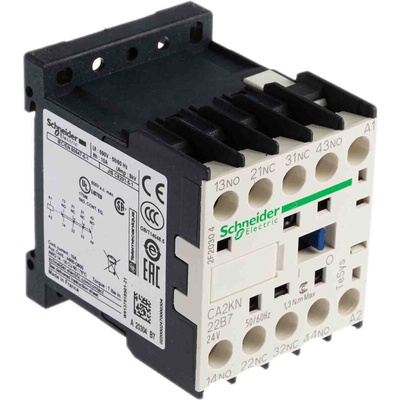

Schneider Electric CA2KN22B7 TeSys K Control Relay.

Features and Benefits.

• TeSys CAK


• Control relay, control circuit application.


• Contacts 2 NO + 2 NC.


• Category AC-15, DC-13.


• Circuit type AC at 50/60 Hz.


• Control circuit voltage 24 V AC 50/60 Hz.


• Screw clamp terminals.


• Mounting – Rail, Plate.


• Minimum switching voltage 17 V.


• Minimum switching current 5 MA.


• Height 58 mm.


• Width 45 mm.


• Depth 57 mmm


• Net weight 0.18 Kg.

Resistance.

• Flame Resistance - V1 conforming to UL 94, Requirement 2 conforming to NF F 16-101, Requirement 2 conforming to NF F 16-102.


• Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6


• Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6


• Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27


• Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27

K Mini Control Relays References

UL E164353

CSA 43364

CA2KN22B7 Datasheet

Green Premium Ecolabel

Green Premium - Product Environmental Profile

Product Environmental Profile
