Schneider Electric Mini Thermal Overload Relays - LR2-K Range
Schneider Electrics K thermal overload relays are adjustable from 0.11 to 11.5 A, they have been predominantly designed for use in applications that require motor protection.
This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals.
Features & Benefits
• Commonly referred to by the range short name - LR2K
• Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons
• Direct mounting under a contactor is achievable
• Standards - IEC 947, BS4941, VDE 0660, NFC63-650
• Standards - CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB
Applications of a Contactor and Control Overload Relay
• The majority of the time is to protect a motor
• To detect both overload conditions and fault conditions to then announce trip command for a protective device
• To deactivate a device whenever it pulls high current
• Sometimes developed into microprocessor systems and solid-state electronics

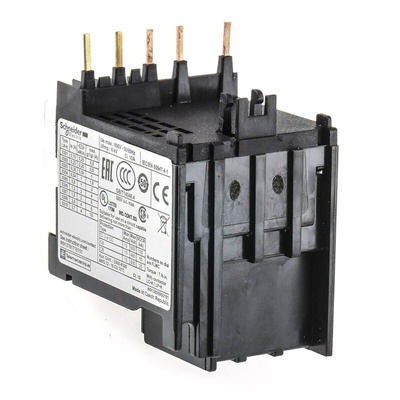

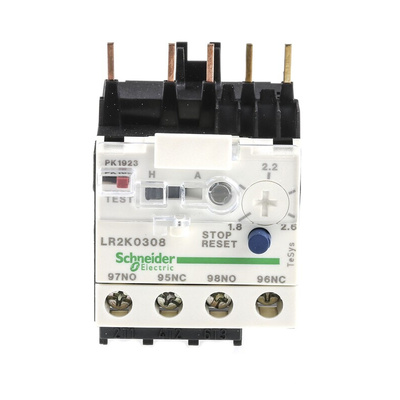

Schneider Electric TeSys K LR2K0308 - Differential Thermal Overload Relay
• The thermal protection adjustment range is 1.8...2.6 A
• The network frequency is < = 400 Hz
• Compatible with LP4K, LC1K, LC7K and LP1K
• Thermal overload class 10A which conforms to IEC 60947-4-1
• Mounting support can be achieved under the contactor, plate - but with specific categories and rail with specific categories
• Yellow trip indicator
• The auxiliary contact composition is 1 NO + 1 NC
Compatibe With?
- LP4K, LC1K, LC7K, LP1K.
