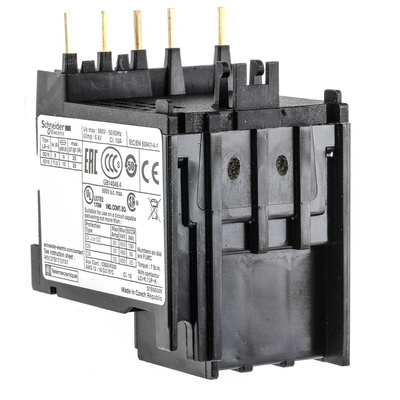

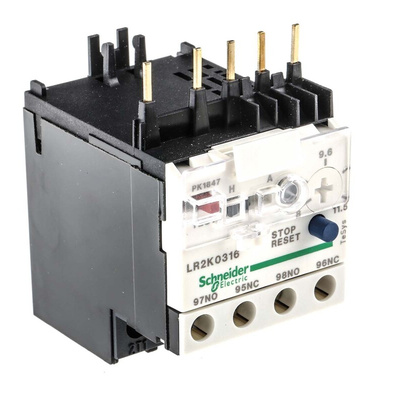

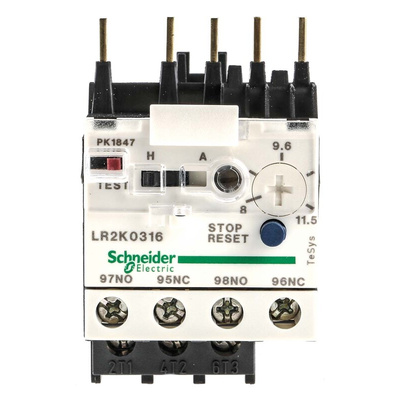

LR2K0316, Schneider Electric LR2K Thermal Overload Relay 1NO + 1NC, 8 → 11.5 A F.L.C, 11.5 A Contact Rating, 100 W, 250 V, Реле

Schneider Electric Mini Thermal Overload Relays - LR2-K Range

Schneider Electrics K thermal overload relays are adjustable from 0.11 to 11.5 A, they have been predominantly designed for use in applications that require motor protection.

This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals.

Features & Benefits

• Commonly referred to by the range short name - LR2K
• Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons
• Direct mounting under a contactor is achievable
• Standards - IEC 947, BS4941, VDE 0660, NFC63-650
• Standards - CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB

Applications of a Contactor and Control Overload Relay

• The majority of the time is to protect a motor
• To detect both overload conditions and fault conditions to then announce trip command for a protective device
• To deactivate a device whenever it pulls high current
• Sometimes developed into microprocessor systems and solid-state electronics

Schneider Electric LR2K0316 TeSys K Differential Thermal Overload Relay.

• Application – Motor protection


• Compatible with LC7K, LP1K, LP4K, LC1K.


• DC and AC Network.


• Class 10A to IEC 60947-4-1.


• Thermal protection adjustment 8 to 11.5 A.


• Contacts 1 NO and 1 NC.


• Phase failure sensitivity to IEC 60947-4-1.


• Yellow trip indicator.


• Screw clamp terminals.


• Height 58 mm.


• Width 45 mm.


• Depth 65 mm.


• Net weight 0.145 kg.

Standards.

• IEC 60947 / VDE 0660, BS 4941, NF C 63-650.


• IP2x to IEC 60529.


• Fire resistance 850° to IEC 60695-2-1.


• Shock resistance NO contact 10 Gn for 11 ms – to IEC 60068-2-27.


• Shock resistance NC contact 10 Gn for 11 ms – to IEC 60068-2-27.


• Vibration NO contact 2 Gn, 5 to 300 Hz to IEC 60068-2-6.


• Vibration NC contact 2 Gn, 5 to 300 Hz to IEC 60068-2-6.
