RS PRO Pressure Reducing Valve, 3/4 in Screwed Iron Female, Редукционный клапан

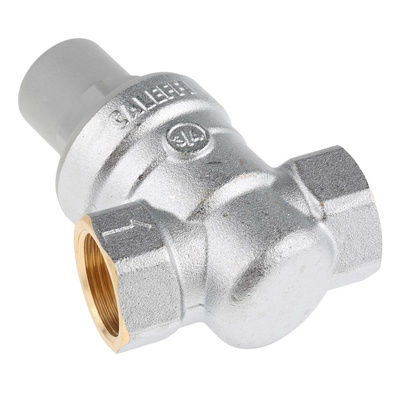

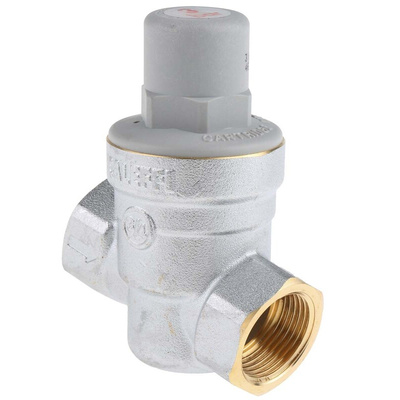

RS PRO Pressure Reducing Valve, 3/4 in Screwed Iron, Female

Control the flow rate in your equipment with this pressure-reducing valve from RS PRO. This versatile component is suitable for maintaining a constant pressure in both compressed air and liquid systems.
The diaphragm of the valve is made from a lightweight acetal resin material, which offers a good level of resistance to corrosion and wear for a long lifespan. This diaphragm acts upon a spring-loaded seat with a pre-set pressure level. This setup will stop the flow rate in your equipment from going over two litres per second, which is the optimum level for preventing excessive noise or damage.
The valve can be installed in any position on your system simply with a simple screwed connection. This gives you the flexibility to apply it in different spaces and arrangements. Use it for heating and plumbing systems in households and industrial settings, as well as in pneumatic machinery.

Features and Benefits

• Chrome-plated brass body material
• Connection of 3/4 in
• Female connection gender
• Maximum flow rate of 2 L/s
• Maximum outlet pressure of 6 bar
• Minimum outlet pressure of 1 bar
• Screwed iron thread standard or connection type

Datasheet
