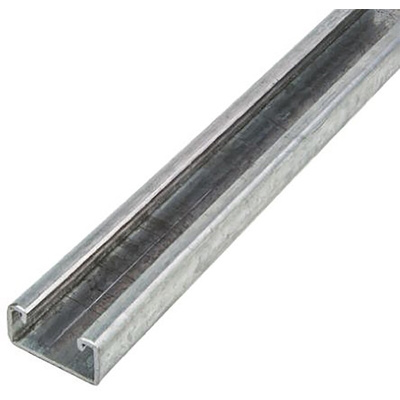

P 3300SS X 2M, Unistrut 22 x 41mm Stainless Steel Strut, 2m Long

Stainless Steel Channels, 2m length

Introducing the range of galvanised channels from Unistrut. These channels have been specially designed as support systems for mechanical, electrical and plumbing installations which can be attached to existing steelwork or concrete inserts, or directly into walls, ceilings, and floors. The range comes in galvanised steel or stainless steel, and in either plain or slotted channel formats (10 x 25 slots on 50 pitch). The 2m length channel is compatible with Unistrut’s Metal Framing System accessories for quick and easy assembly, reducing the amount of time spent on assembly.

Features and Benefits:

• Stainless steel parts are from BS EN10088-2 A4 grade 18/8 material (Type 316-S31)
• Slots are sized for a inch threaded rod or fastener
• Material thickness is 2.5mm and the internal slot width is 21mm
• Plain or slotted channels are available, dependant on requirement
• Ideal for installation of wiring, plumbing and mechanical components
• 2m in length

Applications:

Unistrut’s metal channel range is the original framing strut channel and has been used in countless applications for over 90 years. It is more commonly known as a 12 Gauge Standard or Deep Slotted Channel.

The channel is mostly used for seismic bracing, ceiling grids, pipe, duct, and cable tray supports, trapeze supports and other general framing applications. This particular channel is most suitable for use by electrical and mechanical contractors for pipework or ducting.

Does it come with screws?

No

Note

Material thickness for all channel types is 2.5mm, and internal slot width is 21mm for the stainless steel types.
