930963517 MAS 4100, Hirschmann, MAS 4 Pole M16 Din Plug, 4A, 34 V ac/dc IP30, Screw Lock, Male, Cable Mount, Разъем

RS Pro Cable Mounting Connectors

From RS Pro, these Screwlocking plastic DIN Connectors are suitable for various applications. Its secure screwlock mechanism prevents accidental disconnection, especially in environments where this could cause issues. All models are highly reliable and excellent quality.

Features & Benefits

Cable plugs and sockets fitted with solder bucket and solder tag terminations, respectively.
Cable acceptance 5.5 mm maximum
Tin plated contacts with UL94V-2 rated housings
Screening and integral strain relief

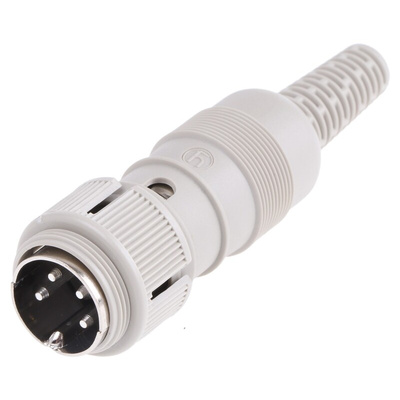

Belden Hirschmann DIN Plug, Straight Body Orientation, 5.5mm Maximum Cable Size - MAS Series - 930963517 MAS 4100

Want to pin down a reliable way to link your equipment? This DIN plug from Belden's Hirschmann range is the missing piece of the puzzle. Its screw-locking mechanism gets a grip to achieve a secure bond in environments where components are at risk of accidental disconnection. The robust PE housing withstands rough treatment, ensuring a long service life.

Features & Benefits

• Fire-retardant housing around the contacts self-extinguishes in 30 seconds, preventing the spread of flames
• Dependable performance in a temperature range between -20°C and +60°C
• Inbuilt shielding prevents EMI from affecting performance
• 4A current rating suits low-power applications

Applications

• Video display units
• Computer networks
• Music production equipment

Does this product have an IP rating?

Yes, it's IP30-rated, meaning it's protected from objects bigger than 2.5mm, such as tools, wires and small fixings.

Datasheet - 930963517 MAS 4100
