930965517 MAS 5100 S, Hirschmann, MAS 5 Pole Din Plug, DIN 41524, 4A, 34 V ac/dc IP30, Screw Lock, Male, Cable Mount, Разъем

Belden Hirschmann DIN Plug, PA66 Body Material, 5.5mm Maximum Cable Diameter - MAS Series - 930965517 MAS 5100 S

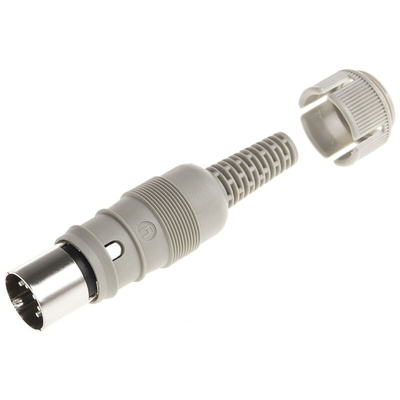

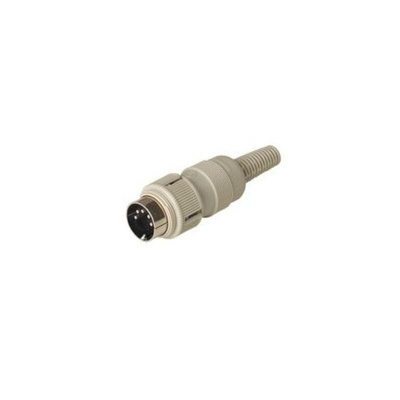

This DIN plug from Belden's Hirschmann range offers reliable cable-to-cable connections. It accepts conductor sizes up to 0.34mm² so it suits any wire with a thickness of up to 5.5mm. The plug's five tin-plated brass contacts ensure optimal signal quality. They're also set in a contact bearer made of non-flammable PA66 thermoplastic that won't contribute to the spread of flames in case of a fire.

Features & Benefits

• Supports AC and DC voltages for versatility
• Non-conductive PE outer housing protects you from electric shocks
• IP30 rating means it's protected against tools and wires larger than 2.5mm
• Operating temperature range between -20°C and +60°C for use in harsh environments

Applications

• MIDI instruments
• IT peripherals
• Keyboards

How secure is this DIN plug's connection?

A locking nut and the solder termination method mean you'll find it easy to create a robust connection between this DIN plug and your cable.

Datasheet - 930965517 MAS 5100 S
