RS PRO 8 Pole Right Angle Din Plug, DIN 45326, 4A, 34 V ac/dc IP30, Male, Cable Mount, Разъем

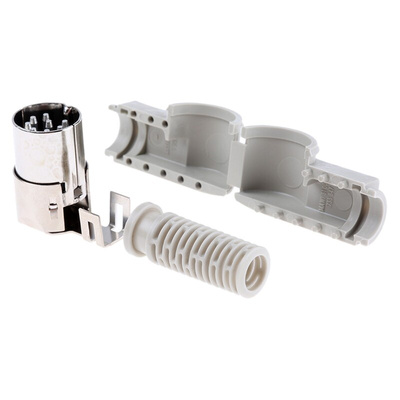

RS PRO 8-Pole Right Angle Din Plug, DIN 45326, 4 A, 34 V AC/DC IP30

Looking for a plug for small electronic devices such as a portable video screen or projector? This eight-pole right-angle plug from RS PRO is a DIN standard model for connecting to specialised digital interfaces. Its right-angle body orientation makes it straightforward to install around corners and in tight spaces without risking damage to the cables.
The plug has conductive brass contacts to preserve the current and protect it from overheating due to high levels of electrical activity. The contacts are coated in a layer of tin to provide first-rate corrosion resistance, keeping the connection from deteriorating over time.
With a usable temperature range of -20°C to +60°C, the plug can withstand harsh industrial environments with little air conditioning or insulation. Its dense polyethylene (PE) housing material will protect the connection from external contaminants such as dust moisture or grease.

Features and Benefits

• Right angle body orientation
• Standard connector size
• Brass contact material
• Tin contact plating
• DIN 45326 compliant
• Male gender
• PE (polyethylene) housing material
• IP (Ingress Protection) rating of IP30
• Operating temperature range of -20°C to +60°C
• Cable mounting type
• Eight contacts
• Shielded
• Solder termination method
• Current rating of 4 A
• Voltage rating of 34 V AC/DC

RS Pro Datasheet
