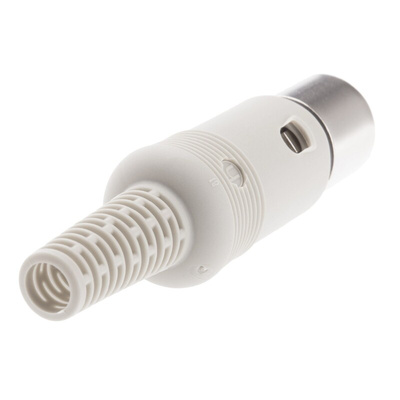

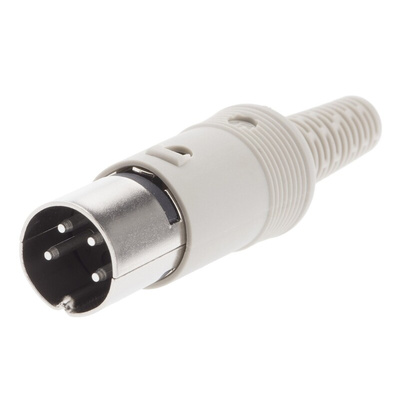

930015517 MAS 40, Hirschmann, MAS 4 Pole Miniature Din Plug, 4A, 34 V ac/dc IP30, Male, Cable Mount, Разъем

Belden Hirschmann DIN Plug, Straight Body Orientation, Shielded - MAS Series - 930015517 MAS 40

Transmit audio and video signals through industrial networks using this DIN plug from Belden's Hirschmann range. Its housing is shielded for safety, minimising the risk of electric shocks. This shielding also limits interference with nearby electronic devices, which helps your communication network run reliably. A robust, corrosion-resistant PE housing makes the component well-suited to moist conditions.

Features & Benefits

• Tin-plated brass contacts for optimum electrical flow
• Solder terminals need minimal maintenance and hold wires firmly in vibrating conditions
• IP30-rated housing offers protection against objects, such as wires and tools, larger than 2.5mm
• Compatible with challenging conditions, thanks to a wide operating temperature range between -20°C and +60°C

Applications

• Industrial communication networks
• Automated production lines
• Robotics systems

How much does this DIN plug weigh?

This miniature plug has a light weight of 9.3g, so it puts minimal strain on your setup.

MAS Series Connectors

Datasheet - 930015517 MAS 40
