930131517 MAS 50 S grey, Hirschmann, MAS 5 Pole Miniature Din Plug, DIN 41524, 4A, 34 V ac/dc IP30, Male, Cable Mount, Разъем

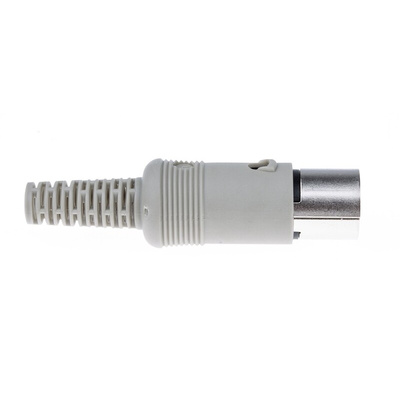

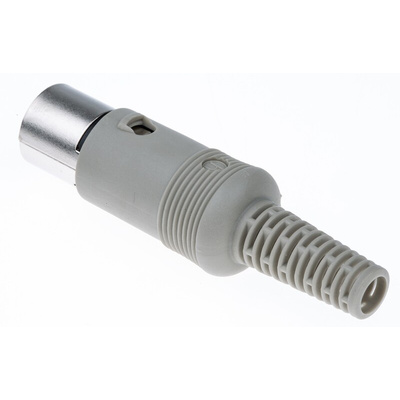

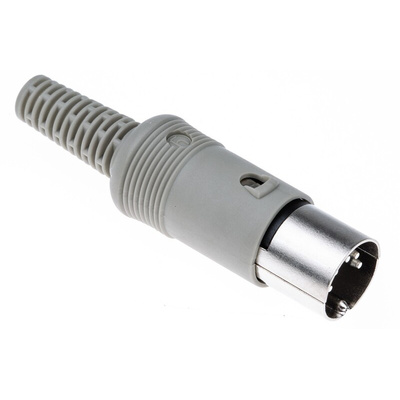

Belden Hirschmann MAS 5-Pole Miniature DIN Plug, 4A, 34V AC/DC - MAS Series - 930131517 MAS 50 S Grey

Need a reliable miniature 5-pole DIN plug to use in audio applications? This male connector from Belden Hirschmann's MAS series features tin-plated brass contacts for excellent conductivity and reliable transmission of the signal. Solder termination lets you make a secure connection, while the polyethylene (PE) housing offers electrical insulation, as well as resistance to impacts and chemicals. A wide operating temperature range of -20°C to +60°C makes this unit suitable for use in demanding industrial environments.

Features & Benefits

• IP30 (ingress protection) rating indicates protection from tools and wires greater than 2.5mm in diameter
• Ridged integrated strain relief helps to prolong the life of the cable assembly

Applications

• Hi-fi systems• Electronic instruments• Computers• Measurement and control systems• Projectors

What's a DIN plug?

A DIN plug is a circular electrical connector with a 13.2mm diameter and features a notch to help achieve correct mating alignment. The number of pins in a DIN plug ranges from three to 14 pins – this one comes with five.

Datasheet

MAS Series Connectors
