931518517 MAS 80 SN grey, Hirschmann, MAS 8 Pole Din Plug, DIN 45326, 4A, 34 V ac/dc IP30, Male, Cable Mount, Разъем

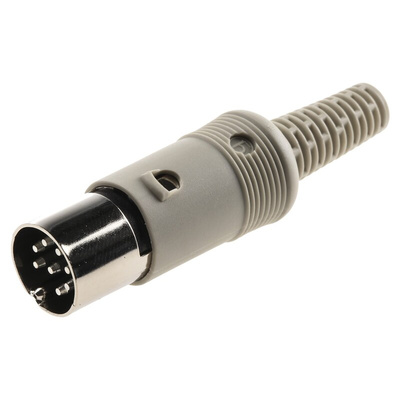

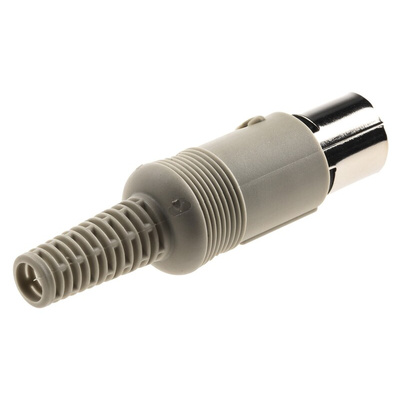

Belden Hirschmann Cable Mount DIN Plug, 8 Contacts, 4A Current Rating - MAS Series - 931518517 MAS 80 SN grey

Connect your portable video devices to a power source with this 8-pole DIN plug from Belden's Hirschmann range. The circular connector is suitable for use with audio and visual equipment in offices and industrial settings. An insulated handle protects you against electric shocks when you're using the connector. Its polyethylene (PE) housing resists abrasion and moisture, making this a suitable choice for demanding operating environments. To deliver optimal conductivity of electrical currents, tin-plated brass contacts provide a low resistance contact surface. This plug is shielded to reduce the risk of interference from nearby electronic devices.

Features & Benefits

• Housing is IP30 (ingress protection) rated, so it's protected against objects larger than 2.5mm
• Solder terminals ensure a durable and low-maintenance electrical connection
• Wide operating temperature range of -20°C to +60°C for safe use in harsh settings

Applications

• Process control
• Automated manufacturing
• Schools and hotels
• Broadcasting

What's a DIN connector?

A DIN plug is a round electrical connector with pins arranged in a circular pattern. Its design was first standardised by the Deutsches Institut für Normung (DIN) in the early 1970s. DIN connectors are used as digital interfaces for equipment like musical instruments and computer keyboards and mice.

MAS_80_SN_grau-grey_EN

MAS Series Connectors
