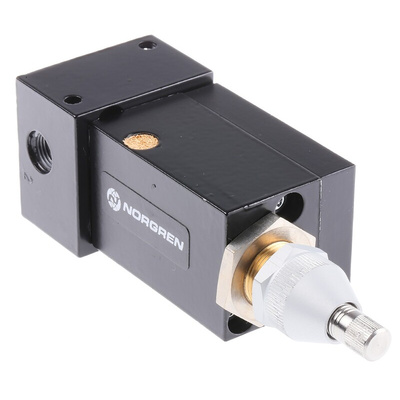

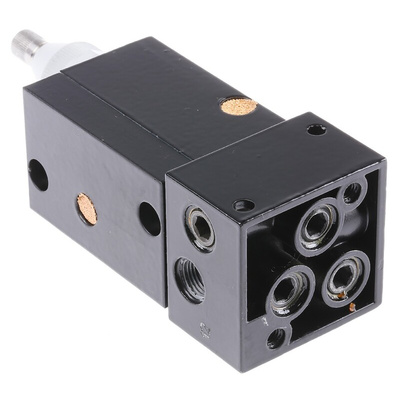

M/1430, Norgren 0.2s to 5s Time Delay Valve, 10 bar max

IMI Norgren Time Delay Valve, Automatic Reset, Adjustable Delay Time Type - M/1430

Choose this time delay valve from IMI Norgren for improved precision in your fluid-control process. By allowing the pressure inside to increase, it creates an interval between flow changes that ensures the functions in your system are timed to a tee. Humid settings are no problem thanks to its die-cast zinc alloy body, which provides high corrosion resistance. With a maximum operating temperature of +80°C, this handy device can handle heated conditions.

Features & Benefits

• Through-hole mounting type for a strong and sturdy setup
• Nitrile rubber seals are abrasion-resistant to prevent leaking if scraped or scratched
• G1/8-size threaded connection ensures broad compatibility with pneumatic fittings
• Wide operating pressure range between 2 and 10 bar means the valve can deal with intense processes
• Works with filtered, compressed, lubricated and non-lubricated air, so you're spoilt for choice

Applications

• Fluid delivery systems
• Process control
• Automotive industry

What's the delay time of this unit?

This valve has an adjustable delay time that you can set between 0.2 and 5 seconds, so it's a highly versatile piece of equipment.

M/1430 BM/1430 Time Delay Valve Data Sheet
