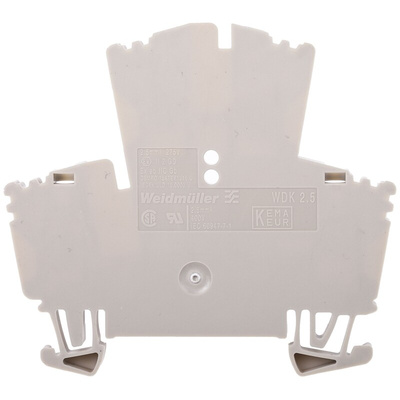

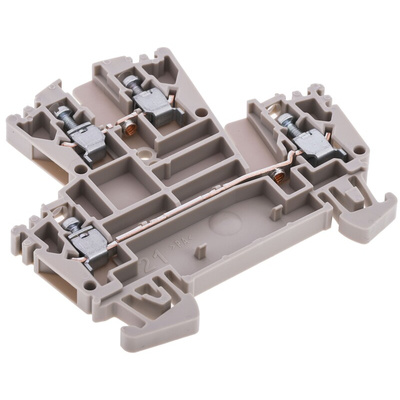

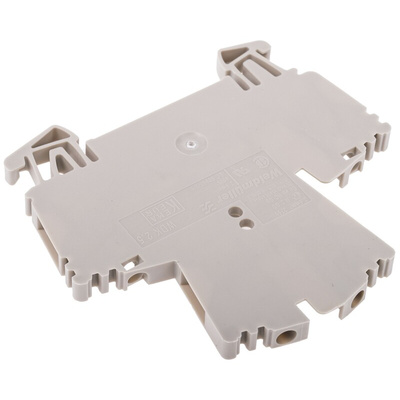

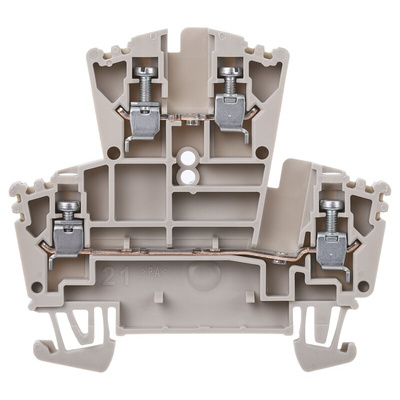

1021500000, Weidmuller WDK Series Dark Beige Double Level Terminal Block, 2.5mm², Double-Level, Screw Termination

Double Deck Terminal

A 2 tier terminal, enabling higher density wiring on the rail. The WDK 2.5 is a standard feed through while the WDK 2.5V has a commoning bar connecting upper and lower tiers.

All materials comply with RoHS requirements and have been tested to current environment guidelines.

Options include
779-598 – WDK 2.5 Double Level Terminal Block
235-5239 – WDK 2.5V Double Level Terminal Block
131-6700 - W End Plate for Terminal Block

Features:

• Continuous operating temperature: -50 °C to 120 °C
• Material: Wemid

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Double-Level Terminal Block, 6kV Impulse Withstand Voltage, 30 To 12AWG Wire Size - WDK Series - 1021500000

Join one or two conductors with this double-level terminal block from Weidmuller. Its two wire feeds enable you to connect complex equipment and circuits without the need for separate modules. As it's made from a Wemid thermoplastic material, it insulates your components against electrical damage and provides effective resistance to heat and wear. This material is also flame-retardant for safety in the event of a fire. Its rated impulse withstand voltage of 6kV means it can handle powerful spikes in voltage.

Features & Benefits

• Wide operating temperature range between -60°C and +130°C for use in harsh conditions
• Snap-on fixing for quick installation on a DIN rail
• Screw terminals for the secure clamping of wires
• Accepts wire sizes between 30 and 12AWG for versatility

Applications

• Industrial automation
• Process control
• HVAC systems
• Energy regulation

What type of DIN rail is this terminal block suitable for?

This double-level terminal block fits onto standard TS35 DIN rails. This means you can use it on top-hat rails for applications such as industrial and motor control circuits.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

WDK 2.5 Datasheet

Catalogue - Terminal Blocks
