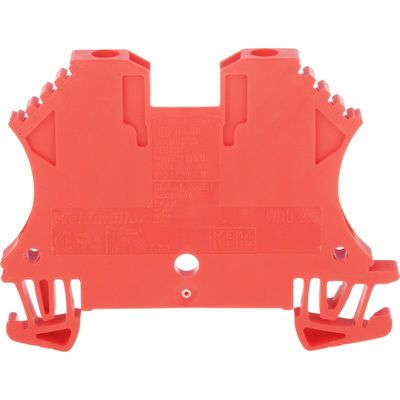

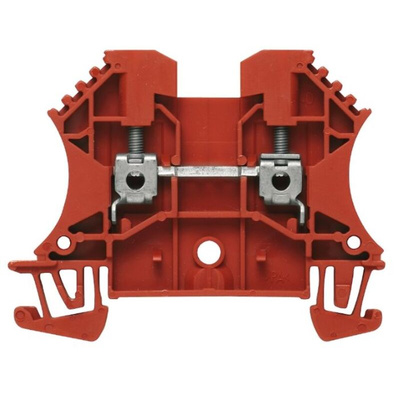

1020040000, Weidmuller WDU Series Red Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination, ATEX

Weidmuller Feed-Through Terminal Block, Screw Connections, DIN Rail Mounting - WDU Series - 1020040000

Build your electrical circuit in a snap with this feed-through terminal block from Weidmuller. The unit helps to connect and protect equipment in an industrial control cabinet, making it a cinch to assemble a complete electrical setup. Its design lets you join two conductors of the same size to one clamping point, which cuts down on the risk of electric shock. It also ensures a durable connection, so there's little chance of wires working loose. As this terminal block is explosion-proof, you can rely on it in hazardous areas.

• Halogen-free construction means it emits no toxic fumes in the event of a fire
• Snaps onto a DIN rail for quick, tool-free mounting
• PA housing for resistance to corrosion and wear
• Tinned copper contacts are highly conductive to provide optimal electrical flow

Applications

• Robotics
• Industrial engineering
• Oil and gas industries

What size conductors are compatible with this feed-through terminal block?

The component is compatible with wires ranging in size from 30 to 12AWG, allowing you to choose the conductor size that best suits your needs.

Approvals

1-10

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
