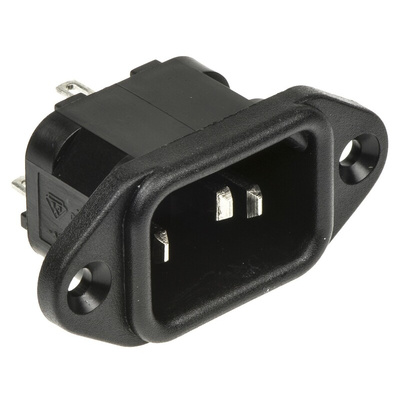

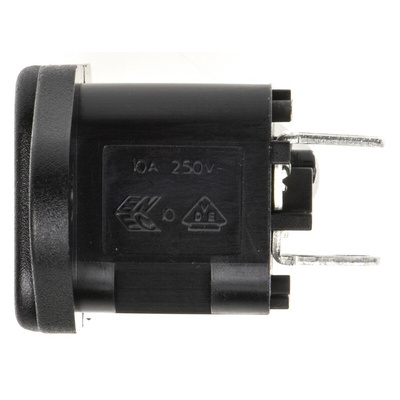

PX0580/28, Bulgin C14 Panel Mount IEC Connector Male, 10A, 250 V ac, Разъем

10A Flange Fixing Standard (C14)

250Vac/10A rated, type 250 ( 0.25 in) blade receptacles
Use insulating boot stock no.211-0913
Choice of 6.3mm 195-912 or 2.8mm 801-954 push -on receptacles for black version
For plug to socket retaining clamp use stock no.195-928
Depth 33mm, fixing hole diameter 3.5mm
Front fixing dimensions 27.4 x 19.8 mm, rear fixing dimensions 40 x 22.7 mm

Note

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >10³MΩ. Their operating temperature is -40°C to +70°C

Approvals

UL recognised component, CSA Certified, BSI, IMQ, SEMKO, VDE

PX0580/63 Datasheet
