9503.00U305, Belden Twisted Pair Data Cable, 3 Pairs, 0.2 mm², 6 Cores, 24 AWG, Screened, 304m, Chrome Sheath, Кабель

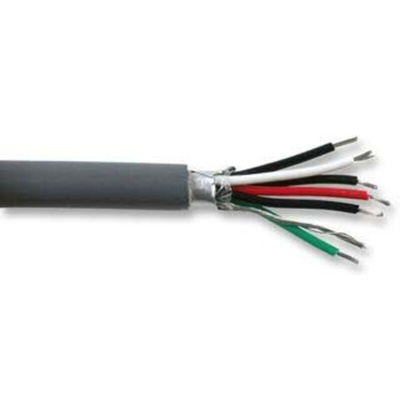

Belden 9503 Computer Cable, 24 AWG, 9503.00U305

Enjoy dependable data transmission with the Belden 9503 multiconductor computer cable.

This 9503 cable uses 3 twisted pair conductors made of tinned copper for optimal conductivity and corrosion resistance. It has a tough PVC outer jacket which ensures durability against abrasions, chemicals, and impacts. It can also be operated within a temperature range of -30°C to +80°C, making it a great choice for use in demanding industrial environments.

This cable features a thin, lightweight and strong polyester/aluminium shield designed by Belden. The unique Beldfoil® shielding technology provides additional insulation and high coverage for superior signal protection.
This unit has a voltage rating of 300V and uses 1.76 Amps maximum current per conductor at 25ºC.

Features and Benefits:

• Semi-rigid PVC insulation protects against signal disruption and loss
• Finely stranded conductors also allow flexibility and enable easier installation
• Includes 24 AWG tinned copper drain wire
• Overall Beldfoil® shield offers 100% coverage

Applications:

RS-232 Applications
Computer Communications
Low Voltage Analog Signals (4-20ma, 0-10v, ...)
Low Voltage Digital Control (24v, …)
Line Level Audio
Panel Wiring

What are twisted pair cables?

Twisted pair cables are commonly used for telephone and data networks as they can transmit high volumes of data at fast speeds. Twisted pair cables contain two conductors twisted together, which carry signals in opposite directions. This design ensures that crosstalk is negated, and helps to defend against external interference which can hinder or distort signal transmission.

Standards

UL2464; NEC CMG (95xx) IEC 332-3C (95xx NH)
