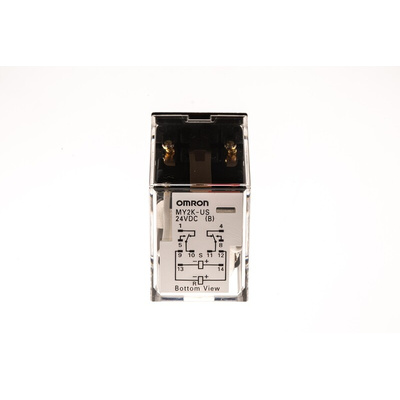

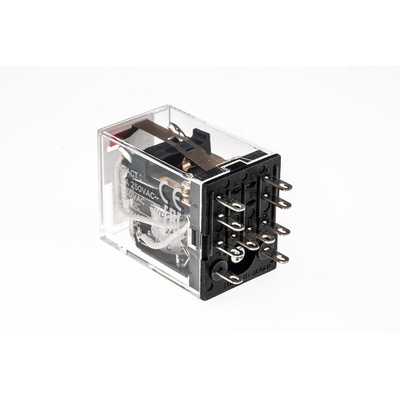

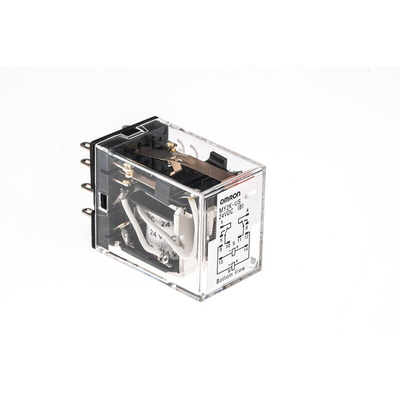

MY2K DC24, Omron Plug In Latching Power Relay, 24V dc Coil, 3A Switching Current, DPDT, Реле

OMRON Power Relay, 28 (L) x 36 (W) x 21.5mm (D), Closed Cover Protection - MYK Series - MY2K DC24

Put your industrial equipment to work with this power relay from OMRON. It's a latching device, so its contact retains its position after the switch has been released. This means that you don't need a continuous current stream to hold it in place once it's been actuated, making it an energy-efficient control solution that suits applications like industrial lighting. Thanks to compact dimensions of 28 (L) x 21.5 (W) x 36mm (D), it's simple to slot the unit into a busy setup. It also weighs just 30g, so puts only minimal strain on your mounting surface.

Features & Benefits

• Maximum switching power of 72W for resistive loads and 36W for inductive loads makes it a good fit for heavy-duty applications
• Dielectric strength of 1.5kV shows it's a reliable insulator as it handles high voltages without suffering damage
• Gold-plated silver contacts resist corrosion to provide long-lasting service, even in harsh environments

Applications

• Medical equipment
• Robotics and automation systems
• Aerospace industry

How much energy does this relay consume?

This unit needs just 1.3W for the operating pulse and 0.6W for the release trigger, so it uses minimal energy.

Approvals

UL; CSA

MYK General Purpose Latching Relay Data Sheet

CSA 031928W

UL E41515

Brochure - Industrial Relays
