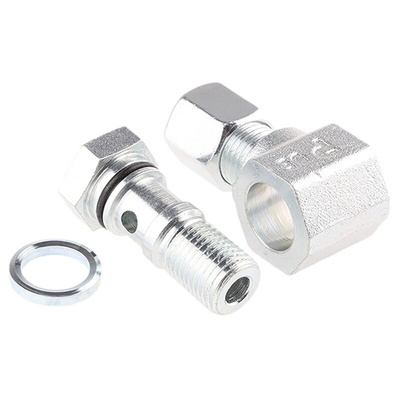

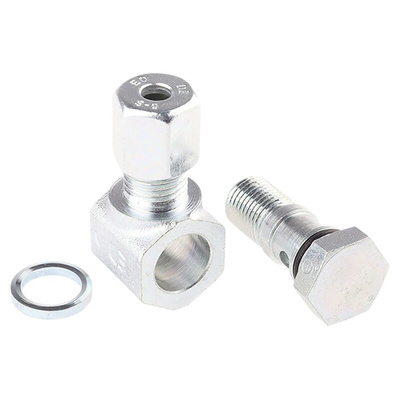

WH06SRCF, Parker G 1/4 Hydraulic Banjo Compression Tube Fitting, 400 bar Max Operating Pressure, Фитинг

0807536
Номер производителя: WH06SRCFПроизводитель: Parker
Цена за шт.
6300.00 руб. (С НДС) *
Количество 5+ 10+
Цена 6099.00 руб. 5904.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Pressure Banjo

The high-pressure banjo elbow from Parker has a BSP parallel thread with port sealing achieved by a hardened sealing ring.

Features and Benefits

•EO 24° cone end/ male BSPP thread with metal sealing ring
•Steel, zinc plated, Cr(VI) free
•NBR standard seal
•L – Light series, S – Heavy series

Warning

Hydraulic systems can work at high pressures. To ensure functional safety of EO® tube fittings, only EO® parts should be used in their assembly and the pressure and temperature ratings should not be exceeded.

Banjos, Bite Rings & Tube Nuts

Ermeto Original or EO® progressive ring fittings, for metric tube, are manufactured from mild steel, with zinc plated and passivated finish. They are available in light duty and heavy duty series to cover a wide range of pressure ratings. Each fitting comes with a tube nut but the bite ring will need to be ordered separately. The progressive ring bite produces a keyed leak-free tube connection. The range of fittings is intended purely for the assembly of connections for fluid applications. All fittings are supplied with an instruction leaflet. For steel fittings it is recommended that seamless drawn steel tubes to DIN 2391/C are used. Operating temperature range without pressure reductions for the steel fitting material is -40°C to +120°C.

Техническая спецификация
pdfDatasheet
Внешнее покрытие:
Цинкованный
Давление - максимальное рабочее:
400 бар
Материал:
Мягкая сталь
Подключение резьбы порта:
G 1/4
Рабочая температура - максимальная:
+120°C
Рабочая температура - минимальная:
-40°C
Размер резьбы:
1/4in
Стандартная резьба:
G
