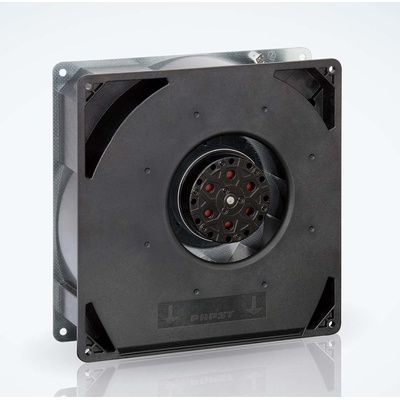

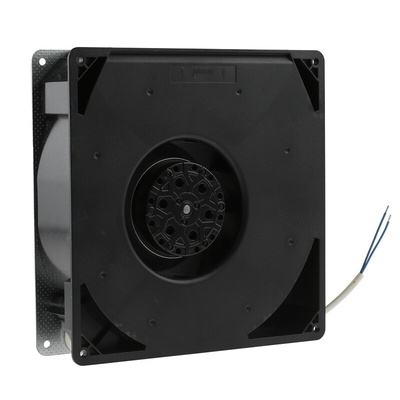

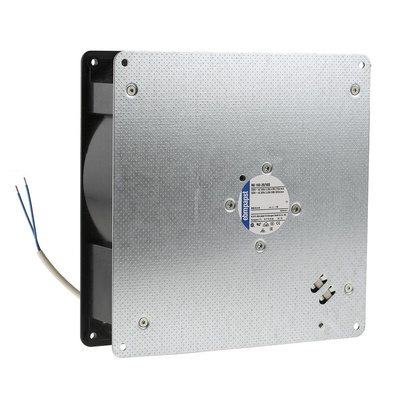

RG160-28/56S, ebm-papst RG 160 N Series Centrifugal Fan, 230 V ac, 202m³/h, AC Operation, 220 x 220 x 56mm

ebm-papst Centrifugal Fan

The ebm-papst 230VAC centrifugal compact fan is provided with speed signal, ball bearing and wire leaded power connection. The scroll housing is made of fibreglass-reinforced plastic and the fibreglass-reinforced plastic is used for the impeller. This fan has a speed of 2750rpm and provides an axial air intake. The centrifugal air exhaust out of the outlet direction of airflow (202m³/h) with single strands 26AWG. TR 64 leads with a forward-curved impeller. This AC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

Features and Benefits

Compact size
Airflow is at right angles to the intake
High static pressure capabilities

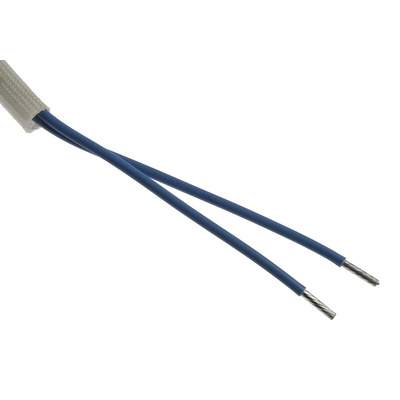

Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation
Protection against reverse polarity and blocked rotor

Applications

Central air conditioning units or building ventilation systems
Automobiles
Railways
Electronic products
Medical treatment
Households
Ventilation
Air conditioning
Refrigeration systems

Certifications

UL approved
CSA certified
VDE
approved
CE certified

Approvals

UL; CSA; VDE
