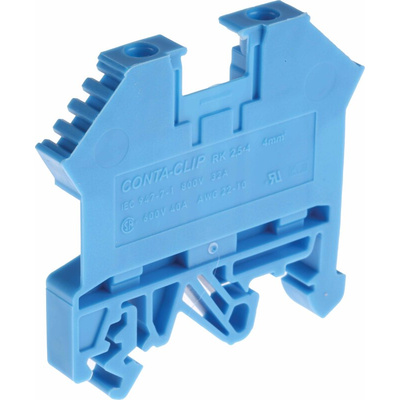

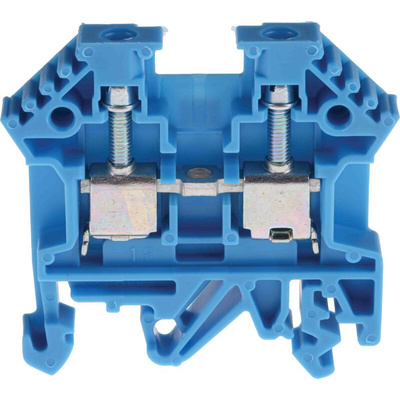

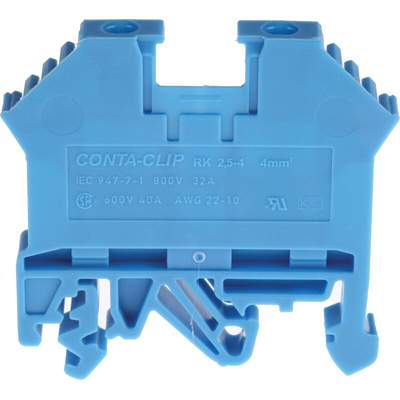

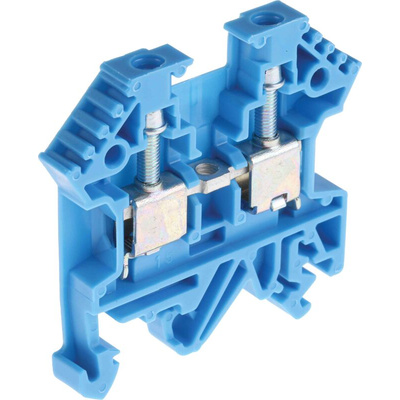

RS PRO Blue Feed Through Terminal Block, 0.2 → 4mm², Screw Termination

RS PRO Blue Feed-Through Terminal Block, 22 to 11 AWG, 0.2 to 4mm², 800 V

Keep your complex electrical equipment protected from overcurrent and short circuits with this terminal block from RS PRO. It's DIN rail-mounted for quick and easy installation. For easier organisation and visual identification of your wiring, it's colour-coded in blue.


The terminal block is suitable for use on a variety of DIN rails as it has universal mounting foot clips in both a 'G' profile (asymmetric to BS5825:1990 rails) and a ’top hat’ profile (symmetric to BS5584:1978 rails). For a secure electrical and mechanical connection, it has a screw termination method that guarantees long-lasting performance.


For added versatility, the block can be used with a wide range of wire sizes between 22 and 11 AWG (American Wire Gauge). It's suitable for use in high-voltage applications of up to 800 V.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.2 to 4 mm²


• Blue colour


• Current rating of 40 A


• Operating temperature range of -40°C to +105°C


• Screw termination method


• Voltage rating of 800 V


• Wire size of 22 to 11 AWG (American Wire Gauge)

Approvals

UL Listed; CSA Certified; NEMKO
