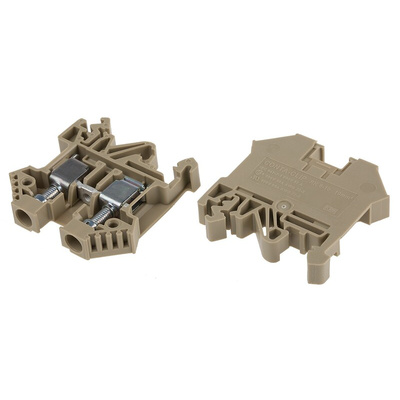

RS PRO Brown DIN Rail Terminal Block, 0.2 → 10mm², Screw Termination

RS PRO Brown Standard DIN Rail Terminal, 22 to 8 AWG, 0.2 to 10 mm², 800 V

Keep your complex electrical equipment safe with this DIN rail-mount terminal block from RS PRO. It ensures your components are protected from potential damage caused by overcurrent and short circuits. It's colour-coded in blue for quick identification and tidier organisation.


For ease of installation, the terminal block comes with universal mounting foot clips in both a ’top hat’ profile (symmetric to BS5584:1978 rails) and a 'G' profile (asymmetric to BS5825:1990 rails). This means you can easily install the block on a variety of DIN rails. This component has a long product life thanks to the screw termination method, which provides a secure mechanical and electrical connection.

The block can accommodate a wide range of wire sizes between 22 and 8 AWG (American Wire Gauge), making it a versatile choice for use in a range of applications. You can use it for high-voltage applications of up to 800 V.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.2 to 10 mm²


• Brown colour


• Current rating of 65 A


• Operating temperature range of -40°C to +105°C


• Screw termination method


• Voltage rating of 800 V


• Wire size of 22 to 8 AWG (American Wire Gauge)

Approvals

UL Listed; CSA Certified; NEMKO

RS Pro Datasheet
