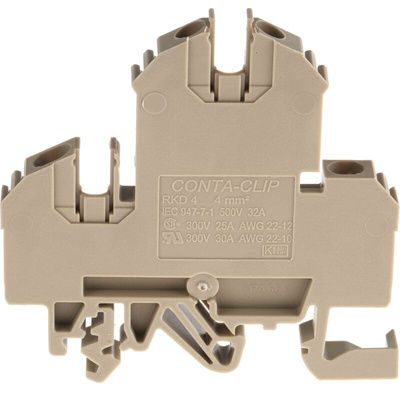

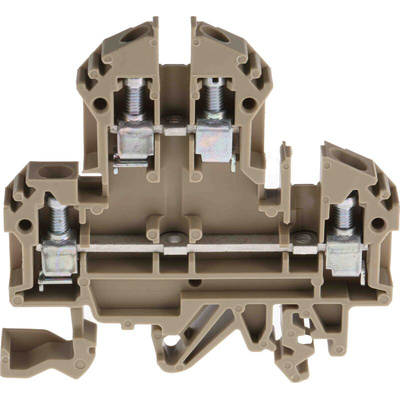

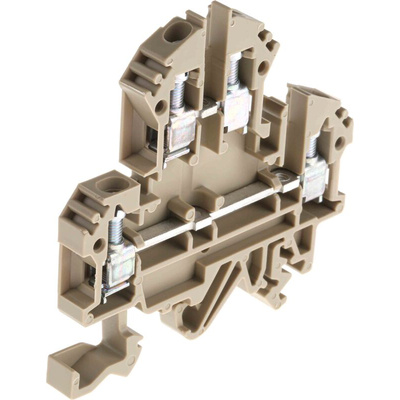

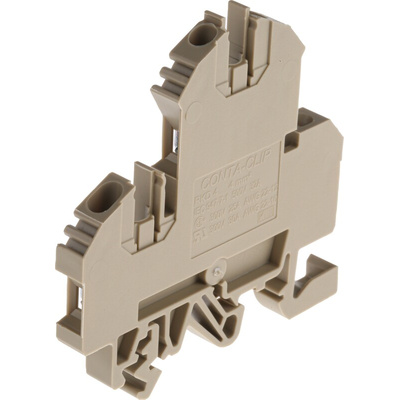

RS PRO Brown Double Level Terminal Block, 0.5 → 4mm², Double-Level, Screw Termination

RS PRO Brown Double-Level Terminal Block, 22 to 12 AWG, 0.5 to 4 mm², 500 V

Protect your electrical equipment from short circuits and overcurrent with this RS PRO terminal block. It fixes onto a DIN rail for quick and easy installation. Thanks to its two levels, this component is suitable for applications that require high-density wiring, as it offers interconnection on both levels.


The brown colour of the block makes it straightforward to match the terminals to the wires and colour-code your system. This means you can identify and organise your cables efficiently to reduce the risk of errors when wiring.


It's suitable for use in high-voltage applications as it has a 500 V voltage rating. It also supports wires ranging in size from 0.5 to 4 mm², making it suitable for a range of applications.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.5 to 4 mm²


• Brown colour


• Current rating of 32 A


• Operating temperature range of -40°C to +105°C


• Double level


• Screw termination method


• Voltage rating of 500 V


• Wire size of 22 to 12 AWG (American Wire Gauge)

Approvals

UL Listed; CSA Certified; NEMKO

RS Pro Datasheet
