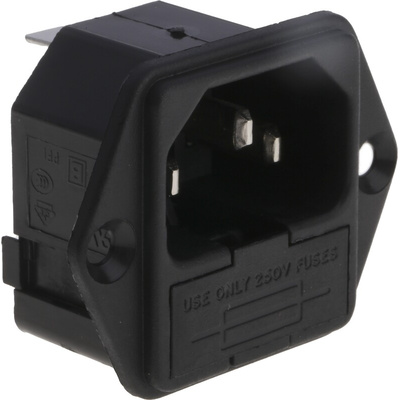

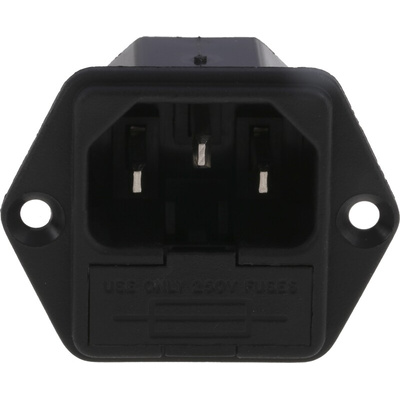

PF0001/63, Bulgin C14 Panel Mount IEC Connector Male, 10A, 250 V, Fuse Size 5 x 20mm, Разъем

Bulgin chassis plug with fuseholder drawer, flange

Bulgin chassis plug with fuseholder drawer for 5 ´ 20 mm fuses and space for spare
Assembly: Longitudinal flange (flange fixed with two screws).

Bulgin IEC Fused Inlet

The Bulgin IEC fused inlet is a twin fused, flanged mount, straight C14 male plug device. It has a voltage rating of 250VAC and current rating of 10A. The fuse link is an electrically connected wire directly to the plug using type 250 (0.25in) blade receptacles.

Note:
These fused plugs accept 5mm x 20mm fuses.

Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Interlocked fuse drawer accepts 20mm fuses

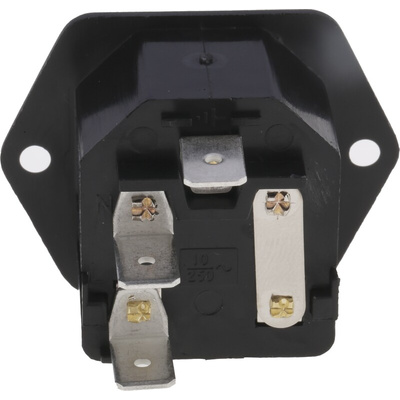

Tab terminal
Contact resistance is less than 10mΩ
Insulation resistance is greater than 1000MΩ
Operating temperature ranges between -40°C and 70°C

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified
IMQ
SEMKO
VDE

Approvals

UL recognised component, CSA certified, IMQ, SEMKO, VDE

PF0001/63 Datasheet
