50077016, Wago 261 Series Grey Terminal Strip, 1-Level

Wago Terminal Strip, 4 Poles, Copper Conductor Material - 261 Series - 50077016

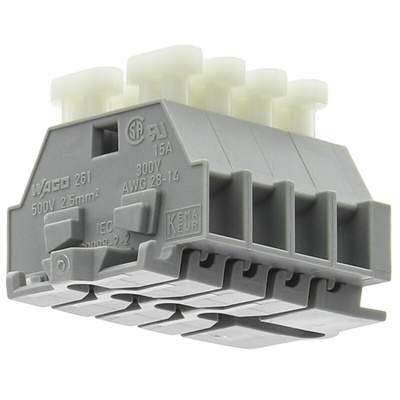

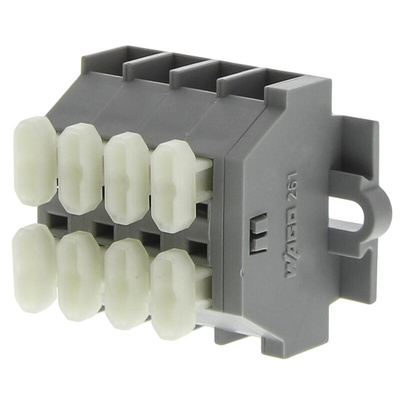

Need a trusty middleman to pass signals from cables to parts of your industrial equipment? Count on this terminal strip from Wago to do the job. It has copper contacts that take charges from wires and relay them down the line, limiting your exposure to live elements for enhanced safety. Cage clamp termination with push-in actuators makes assembly a walk in the park. It's the right choice for setups with limited space, thanks to its compact dimensions of 23.3 (H) x 38.1 (W) x 28.1mm (D).

Features & Benefits

• Light weight of 11.5g means it puts minimal strain on the mounting surface
• PA housing withstands wear and impact, making it fit for use in harsh environments
• Halogen-free construction to prevent emission of toxic fumes in the event of a fire

Applications

• Electrical workshops
• Switchgear systems
• Renewable energy industry

Is this terminal strip flame-resistant?

Yes, the component stops burning in 10 seconds or less in the event of a fire to help prevent the spread of flames, making it a safe bet for use in sensitive work areas.

261-104/341-000 Terminal Block 2 Conductor 4 Pole Module Data Sheet

CENELEC 96-00357
