072732 PKZM0-0,4, Eaton 0.25 → 0.4 A Motor Protection Circuit Breaker, 690 V ac, Автоматический выключатель

Eaton Motor Protection Circuit Breaker - PKZM0 Series

Eaton's reliable and robust motor protection circuit breakers are the perfect solution for your motor protection needs, providing protection from electrical faults such as an overload of high voltages, short circuits or relay shutdowns.

Down-time of machinery can be detrimental to a business and its operations, Eaton's PKZM0 motor protection range of circuit breakers has been created and designed to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents. This reduces the amount of downtime of machinery to enable operations to continue running smoothly.

The PKZM0 motor protection circuit breakers are matched to the DIL contactor series making the ideal configuration or motor starter combinations. This motor protection range of circuit breakers has a short circuit breaking capacity rated to 150 kA up to 12 A and 50kA up to 32 A. Accessories including auxiliary contacts, trip indicating auxiliary contacts, voltage release and shunt trips can be installed without tools and greatly reduce installation time.

Features & Benefits

• Manually-actuated motor protective circuit breaker
• Rotating handle with clear switch position (ON and OFF)
• DIN-rail mounting
• Forms part of the xStart family of control gear products
• Rated operating voltage 690Vac
• Typical motor protection accessories – Shunt release 492-1709 & 492-1715, lockable rotary handle 244-0113

How do I select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructures now rely on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation and cooling. These systems are vital in ensuring business continues as usual, therefore must be protected against overcurrent's, thermal overloads and similar problems.
To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

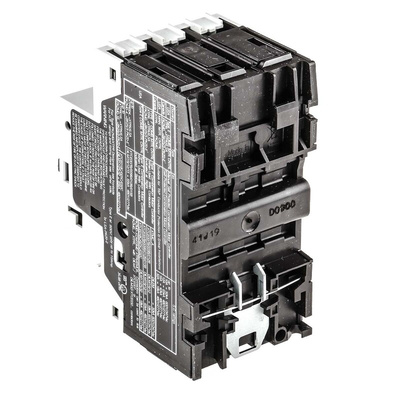

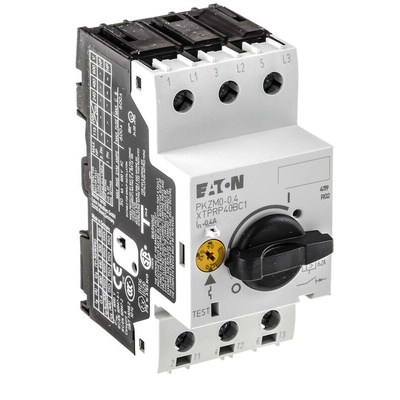

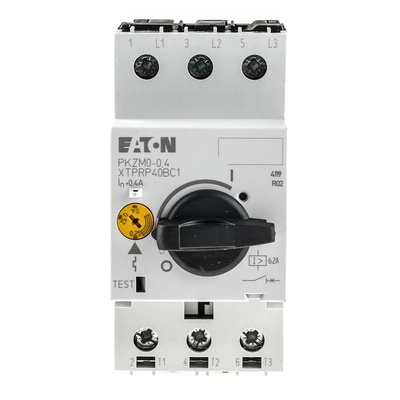

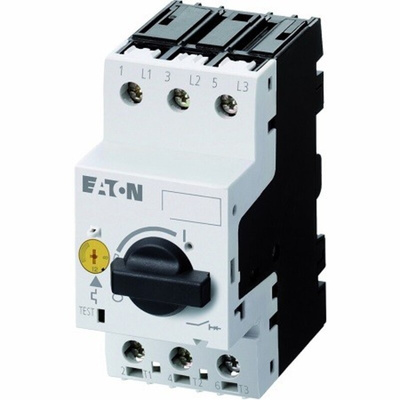

Eaton Motor Protection Circuit Breaker, 0.25 to 0.4A Current Rating, 690V AC Supply - PKZM 0 Series - 072732 PKZM0-0,4

Manage and protect your electrical motor with this motor protection circuit breaker from Eaton. It acts as an intermediary between devices to safeguard against faults like short circuits, high voltage overloads and relay shutdowns. This means less interruption to your processes and reduced downtime. For extra protection, the unit can also detect phase failures. As it's resistant to mechanical shock and suitable for use in hazardous areas where explosive atmospheres may be present, this breaker is a safe choice for demanding environments. You can use it in heating, cooling and ventilation applications in industrial and commercial environments.

Features & Benefits

• Screw terminals hold wiring securely, so there's little chance of conductors accidentally working loose
• Long mechanical lifespan of up to 6 million operations for consistent reliability throughout its service life
• Turn button actuator that's simple to control manually
• Protected against direct contact when actuated from the front for operator safety

Why does this motor protection circuit breaker have a test function?

This circuit breaker's test setting lets you check that the device is in good working order in a controlled setting before installing it in a live situation where you depend on it for safety.

2002010307006648 China CC

Eaton PKZM0-0,4 Motor protection circuit breaker Datasheet

0818126_Catalogue_en

0818126_Instruction Sheet_en
