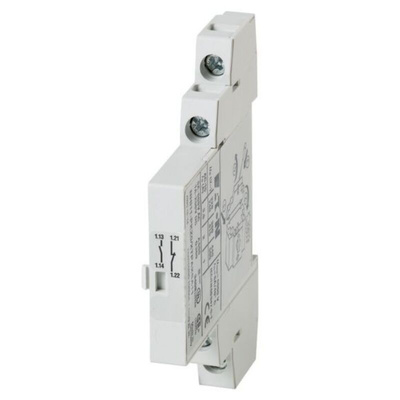

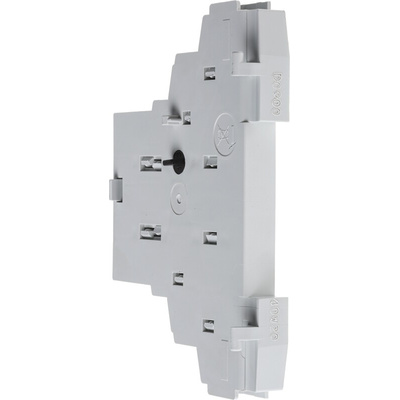

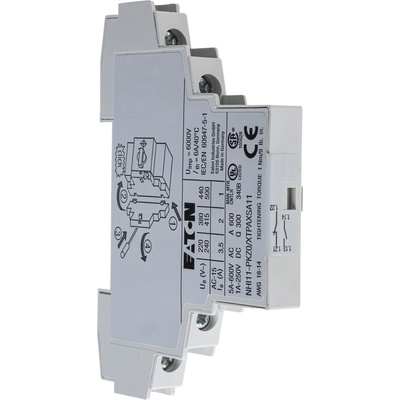

072896 NHI11-PKZ0, Eaton Auxiliary Contact, 2 Contact, 1NC + 1NO, Side Mount

Eaton Auxiliary Contact, 6kV AC Impulse Withstand Voltage, Screw Termination - 072896 NHI11-PKZ0

For improved motor circuit protection, count on this auxiliary contact from Eaton. It's designed to work with circuit breakers and control secondary functions like trip indication or signal transmission to your equipment's PLC. The component's thermoplastic housing braves impacts and abrasion without breaking a sweat, so you can rest assured it'll stay on shift, even in harsh environments. It loses just 0.04W to heat during operation, making this your energy-efficient workmate. As it's DIN-rail mounted, you don't need specialised tools to set it up, saving time and effort. You'll find it used on assembly lines.

Features & Benefits

• Wide operating temperature range between -25°C and +55°C for use in extreme climates
• Narrow width of 9mm means it doesn't take up a lot of space, making it suitable for confined settings
• Impulse withstand voltage rating of 6kV to handle high power surges without damage

What's the service life of this auxiliary contact?

This unit has a mechanical lifespan of 100,000 operating cycles and an electrical lifespan of 50,000 cycles, so you can be sure of long-term performance.
