081438 P1-32/EA/SVB, Eaton 3P Pole Panel Mount Isolator Switch - 32A Maximum Current, 15kW Power Rating, IP65

Eaton Panel Mount Isolator Switch

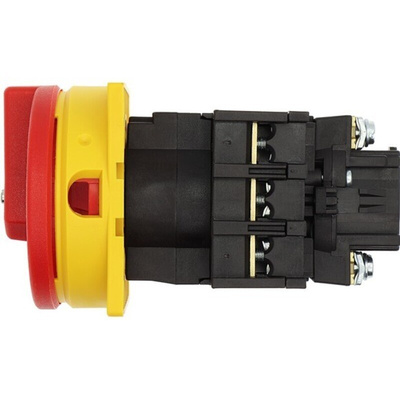

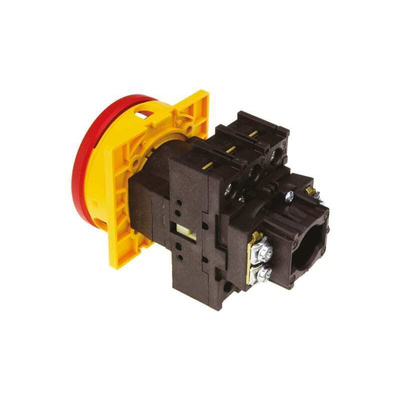

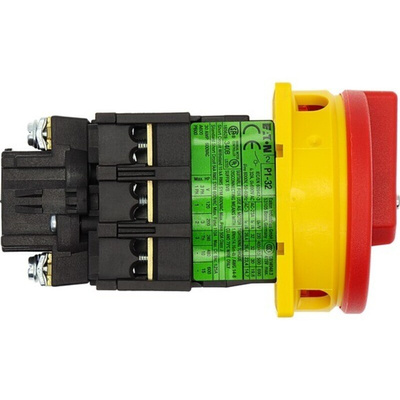

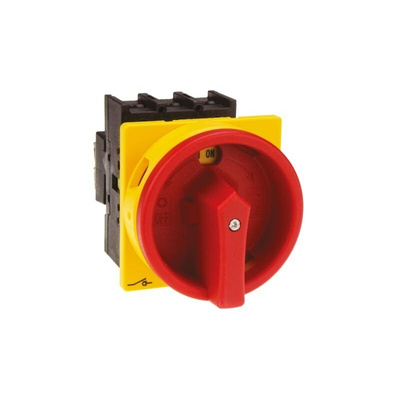

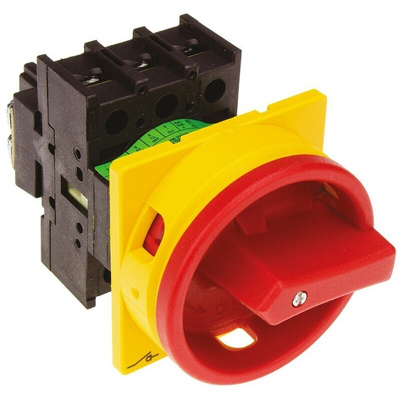

Eaton's panel mount isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring, manually disconnecting the power supply to isolated parts of the circuit. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

Features & Benefits

• The perfect solution for installing as a safety measure
• Used as an emergency switching off/emergency stop device
• The basic functions are when used as a main switch, maintenance switch or manual override switch
• Thermoplastic, high impact surface mounting enclosure with an IP65 rating - this means that the enclosure part of the isolator has ingress protection against dust and is also protected against low-pressure jets of water that comes from all directions
• Rated uninterrupted current of up to 32 A
• Lockable in the 0/OFF position, with up to three padlocks
• Red rotary handle and yellow locking ring, providing an aesthetically pleasing finish
• Common accessories: 262-3784, 219-1445, 219-1439

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary switch or knife-blade disconnect to isolate and de-energise a circuit. Commonly used in industrial automation and control settings.

Eaton Non-Fused Isolator Switch, Panel Mounting, 3 Pole - P1-32 Series - P1-32/EA/SVB

Looking for a component that can serve as a main switch and a safety device at the same time? This high-performance isolator switch from Eaton both cuts off and permits power flow to the circuit, and can be locked in the off-state during maintenance, ensuring maximum safety. The switch has a rotary handle made of a thermoplastic material that's durable and serves as an insulator to protect you from electric short circuits. Switches like this are a vital component in the manufacturing and electrical distribution industries.

• Power rating of 15 kW suitable for heavy-duty applications
• Designed to be maintenance-free and offer a long service life
• Wide temperature range of -25°C to +50°C for use in extreme conditions
• IP65 (ingress protection) rating indicates that it's dust-proof and resistant to low-pressure water jets

Who can install an isolator switch?

A trained and experienced electrician should always be the one to carry out the installation of an isolator switch. This is because the main power supply of the system has to be cut off and tested to ensure there's no residual current or incoming power supply.

Dimensions
