074320 P3-100/EA/SVB, Eaton 3P Pole Panel Mount Isolator Switch - 100A Maximum Current, 55kW Power Rating, IP65

Eaton Non-Fused Switch Disconnectors - P3 Series Isolators

The P3 series of switch disconnectors from Eaton are compact and robust. This range of isolator switches is suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These disconnect switches can also be used as safety switches.

With an IP65 degree of protection, the devices are suited to hard-wearing industrial environments with a rated uninterrupted current of up to 100 A. Available in four different mounting options (surface mounting, flush mounting, rear mounting, and service distribution board mounting). These switches can be selected and configured in a multitude of contact sequences.

With the metal extension shaft accessories, the P3 switches can be mounted in electrical cabinets of up to 600 mm deep and with several Handle and Shaft options a solution can be found for every application.

• Performs local isolation, manual override & safety switch functions
• Rated uninterrupted current from 30 - 100 A
• P3 Series fit a standard front plate of 84 x 84 mm

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary switch or knife-blade disconnect to isolate and de-energise a circuit. Commonly used in industrial automation and control settings.

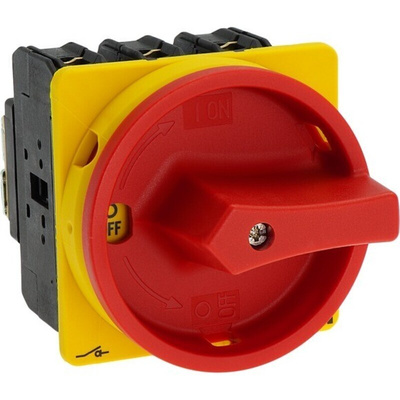

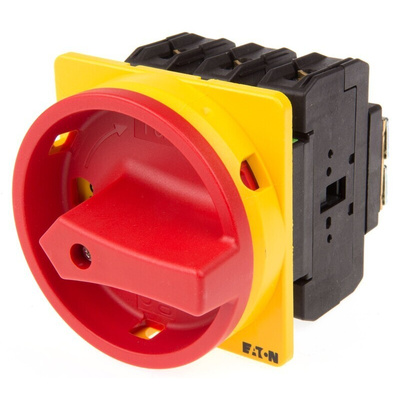

Eaton Non-Fused Disconnector Switch, 100A, 440V AC - P3-100 Series - 074320 P3-100/EA/SVB

Ensure quick and safe circuit switch-off with this non-fused disconnector switch from Eaton. It's used to immediately power down your system for maintenance and safety purposes. It features an ergonomic handle for ease of operation – this is red in colour for quick identification in the event of an emergency. This unit has an IP65 (ingress protection) rating for protection against dust and low-pressure water jets, making it ideal for use in harsh industrial environments. Its high power rating of 50kW makes it a suitable choice for your heavy-duty systems. You'll commonly find this type of switch used in industrial automation and electrical engineering applications.

• Compact dimensions of 65 (length) x 65 (width) x 59mm (depth) to save space
• Wide operating temperature range of -25°C to +50°C for use in harsh environments
• Screw terminals and panel-mount design for simple circuit board installation

Can I use a padlock with this disconnector switch?

Yes, this disconnector switch is suitable for use with a padlock to ensure additional safety.

Why should I use a disconnector switch?

Disconnector switches provide a high level of system safety, as they give you immediate access to override or isolate a part of your circuit in the event of machine malfunction.
