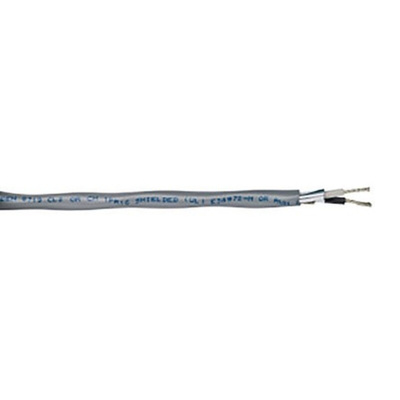

8723.00305, Belden Twisted Pair Multipair Industrial Cable, 2 Pairs, 0.33 mm², 4 Cores, 22 AWG, Screened, 304m, Chrome Sheath, Кабель

Belden Multicolour Multi-Pair Industrial Cable, 300 V, 0.33mm² Cross-Sectional Area - 8723

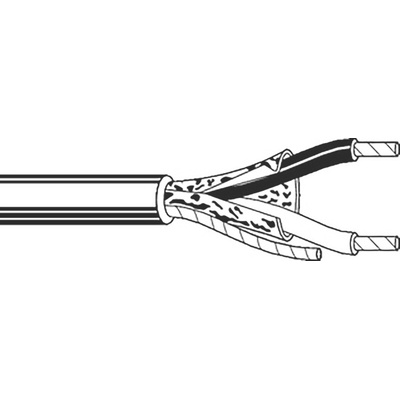

Choose this Belden multi-pair industrial cable for efficient data transmission in your communication systems. It's made up of two twisted pairs of wires that are shielded for protection against noise and interference. Each individual pair is colour-coded for ease of identification during termination. The polypropylene insulation offers good heat resistance to prevent overheating. For long-lasting and reliable performance, the conductors are made of highly conductive and corrosion-resistant tinned copper. Thanks to its length, you can use this cable in large-scale or multiple applications.

Features & Benefits

• Broad operating temperature range of -15°C to +80°C in flexible installations or -45°C to +80°C in fixed installations for use in demanding environments
• Drain wire grounds cores to prevent signal loss
• Choose from PVC version or LSZH (low smoke zero halogen) cable jacket (382-7202) to minimise the risk of toxic fumes in the event of a fire

Applications

• Sound equipment
• LAN (local area network)
• Audiovisual equipment

What type of shield does this cable have?

Each twisted pair in this cable has an aluminium polyester shield that provides 100% coverage, reducing interference to ensure reliable, noiseless signal transmission.

Datasheet - Belden 8723

Cable Selection Guide

Belden Classics Multi-Conductor & Paired Cables
