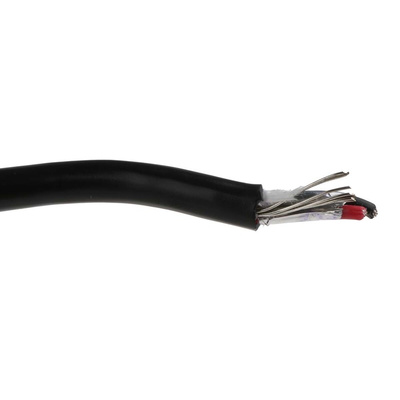

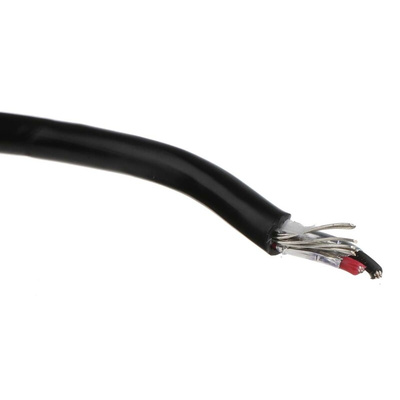

8451 010500, Belden Line level Low Voltage signal Cable, 0.36 mm² CSA, 3.51mm od, 152m, Black, Кабель

Belden Single Pair 100% Beldfoil Shield Audio Cable

For efficient and dependable delivery of audio signals, try the Single Pair Audio Cables with 100% Beldfoil shielding, from Belden.

This cable has 1 pair of 22AWG stranded (7x30) tinned copper conductors, which ensures high conductivity. The PVC (Polyvinyl Chloride) jacket offers durability alongside superior insulating properties. It can be used in various environments due to its wide operating temperature range of -20°C To +75°C, to suit your application requirements.

This cable also features the patented overall Beldfoil® shielding technology, a highly effective screen constructed with aluminium/polyester foil. It is lightweight, thin, and flexible whilst remaining strong, for optimal shield coverage.

Features and Benefits:

• Flexible and robust shielded cable for transmission of audio signals
• Tinned copper conductors ensure excellent conductivity
• 300V Voltage rating
• PP (Polypropylene) insulation
• Easier stripping and quick installation due to foil shields bonded to the cable jacket

Applications:

Automatic stripping equipments
Low voltage analog signals
Low voltage digital control
Line Level audio
Computer communication
Panel wiring

Why choose Belden?

With over 100 years of experience Belden are global industry experts at providing high-quality cabling and connectivity solutions. They create dependable products that help to minimise signal loss and maximise uptime, giving you high performance every day.

Belden 2-Core Audio Signal Cable, 22AWG - 8451

Ensure efficient delivery of audio signals to your devices with this 2-core signal cable from Belden. Thanks to its corrosion-resistant copper conductors, this cable is highly conductive and has a voltage rating of 300V. Its twisted-pair design and patented Beldfoil shielded technology ensure protection against signal distortion and EMI (electromagnetic interference). The cable’s outer PVC (polyvinyl chloride) jacket and PP (polypropylene) insulation offer both durability and enhanced workplace safety, as it’s protected against high temperatures and chemical exposure.

Features & Benefits

• Wide operating temperature of -20°C to +75°C for use in harsh industrial environments
• Outer diameter of 3.51mm makes it an easy fit in compact spaces
• Black sheath colour for easy cable identification
• PVC jacket is flexible, so installation is simple

Applications

• Computer communication devices
• Panel wiring
• Analogue signalling
• Alarm and security systems

Does this signal cable come with a drain wire?

Yes, this signal cable features a drain wire to ensure effective electrical grounding. It carries unwanted noise away from your circuit to improve signal transmission. It also ensures user safety by protecting against electric shocks.
