YE00424+01152, Belden Multicore Industrial Cable, 0.36 mm², 3 Cores, 22 AWG, Screened, 152m, Chrome Sheath, Кабель

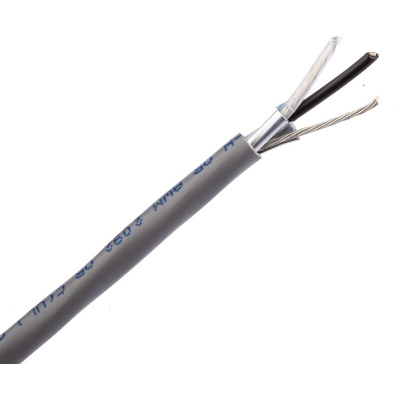

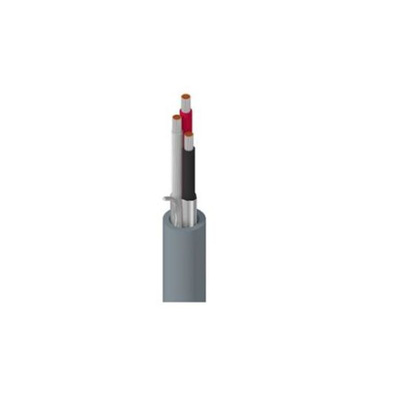

Belden Screened Multicore Industrial Cable, 152m Length, 22 AWG - 8771.01152

Link your industrial equipment and ensure effective communication with this multicore cable from Belden. Its conductors are made of tinned copper material that's highly conductive and resistant to oxidation and corrosion, which means the cable can withstand harsh conditions. For surface protection, it has an outer sheath made of polyvinyl chloride (PVC) material that's durable and abrasion-resistant, so it won't scratch or crack easily. Thanks to a wide operating temperature range of -20°C to +60°C, this is a practical choice for use in demanding conditions.

Features & Benefits

• Maximum recommended pull tension of 36lbs means it can withstand rough handling
• Low conductor-to-conductor capacitance of 23pF/ft (picofarad per foot) ensures high-quality signals
• Comes with a drain wire to carry excess charges to the ground for electrical safety
• Minimum bend radius of 2in to allow for flexible installation around corners

Applications

• Robotics and factory automation• Automotive industry

What's the bulk weight of this cable?

The bulk weight of this cable is 22lbs/1000ft. This means it's lightweight and easy to carry around.

What can I use to cut or strip this cable?

You can cut this cable using a simple utility knife or blade. You should carefully follow the cable's contours to avoid cutting or nicking the wires inside.

Standards

UL2093 (8770, 8770, 8772), NEC CM (8770, 8771, 8772),
UL2107 (8618), NEC CL3 (8618)

Datasheet

Cable Selection Guide
