0382860000, Weidmuller EW Series End Bracket for Use with Terminal Block

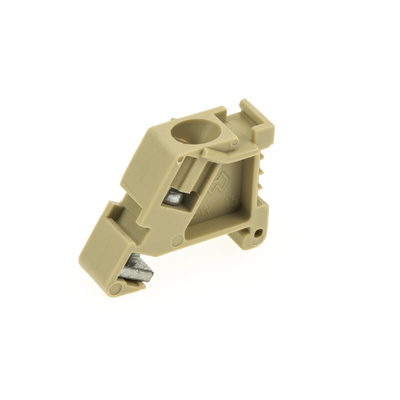

Weidmuller End Bracket, 10mm Width, PA 66 Material - EW Series - 0382860000

Put a stop to terminals blocks sliding around with this end bracket from Weidmuller. Thanks to its snap-on mounting style, it clips into place on a DIN rail in a jiffy. A screw clamp ensures it won't budge after installation, reducing maintenance time. The PA 66 housing gives this unit the strength it needs to resist wear, impact and chemicals. Its wide operating temperature range between -50°C and +100°C means it has no trouble handling harsh industrial environments.

• Space for labels on the top and front to keep your connections organised
• Integrated slot for test plugs helps to make servicing simple
• Flame-retardant for safety in the event of a fire

Applications

• Control cabinets
• Power distribution boxes
• Safety systems
• Machine panels

How large is this end bracket?

This end bracket has compact dimensions of 26 (H) x 10 (W) x 21mm (D) to add minimal bulk to your setup.

What labels fit on this end bracket?

You can use markers from the DEK series (124-4699 and 177-0951) with this end bracket. These labels are easy to mount and have space for writing or printing digits.

AKZ Miniature Series

Approvals

(1) CSA certified, (2) UL recognised

Datasheet

Instruction Sheet - Modular TERMINAL Blocks: AKZ- Series

Catalogue - Terminal Blocks Klippon Connect
