K640062-NI, Kaba Key Switch, SP-CO, 5 A@ 250 V ac 2-Way Flat, Random-Key, Выключатель с ключом

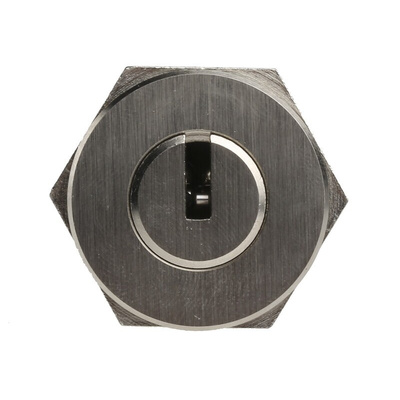

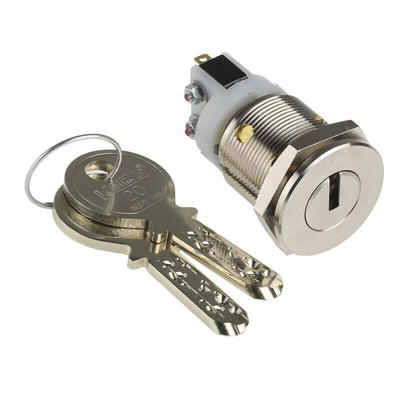

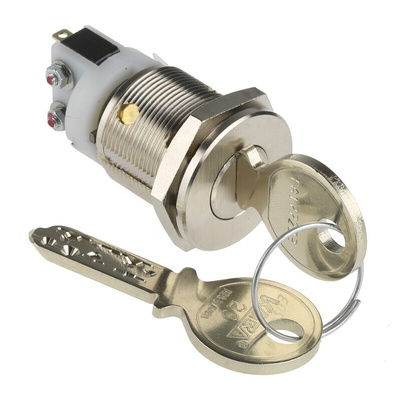

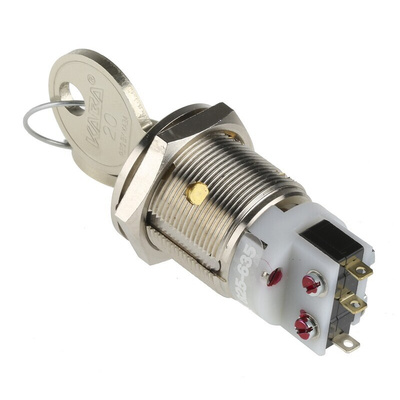

Kaba Key Switch

The Kaba key switch lock is a flat key that is ideal for through-panel fixing. It is fitted with a single-pole miniature microswitch. This device offers the highest level of security with a 20-pin lock mechanism. Also, each key has a unique design that is virtually impossible to copy. This concept of key security can be further enhanced by registering the keys with the manufacturers using the registration card included with the product. Duplicates can then only be obtained by the registered authorised signatory.

Features and Benefits

Number of positions are 2
Switch operation is OFF-(ON)
Contact configuration is SP-CO
Contact current rating is 5A at 250VAC
Solder terminal
Mechanical life is 3 x 10^4 operations
Contact Voltage rating is 30VDC and 250VAC

Applications

Control panels
Alarms
Lighting controls

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

KS64 and KS65 Series SwitchLocks Datasheet

Datasheet

Key Registration
