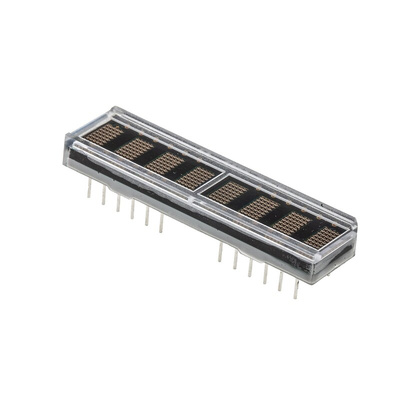

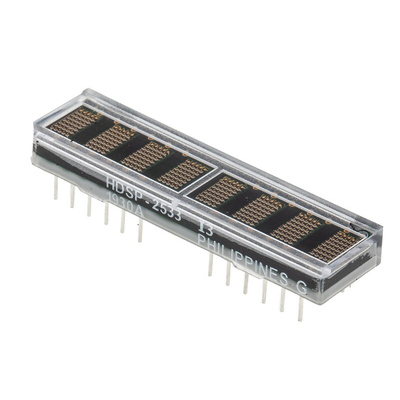

HDSP-2533 Broadcom 8 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Green 7.5 mcd 4.6mm, Дисплей

8 Digit Alphanumeric Display, Avago HDSP-253x Series

8-digit, 5x7 dot matrix, alphanumeric, programmable 5mm high LED displays.

X-Y stackable
128 ASCII character set
16 user-definable characters
Programmable functions
Multi-level dimming and blanking
Microprocessor bus interface

Applications include: computer peripherals, industrial instrumentation, portable data entry devices, telecommunications, test equipment.

Broadcom Alphanumeric Display

The Broadcom green alphanumeric display has 8 characters and dot matrix display format of 5 x 7. It has alphanumeric, programmable 5mm high LED displays with a luminous intensity of 7.5mcd. The 5.0mm (0.2in) high, characters are packaged in a 0.300inch (7.62 mm) 30-pin DIP. The on-board CMOS IC can decode 128 ASCII characters, which are permanently stored in ROM. Also, 16 programmable symbols may be stored in onboard RAM. Seven brightness levels provide versatility in adjusting the display intensity and power consumption. This is designed for standard microprocessor interface techniques. The display and special features are accessed through a bidirectional eight-bit data bus.

Features and Benefits

128 ASCII character set
16 user-definable characters
Micro-processor bus interface
Multi-level dimming and blanking
Programmable functions
Wave solder able
X-Y stackable

Applications

Computer peripherals
Industrial instrumentation
Portable data entry devices
Telecommunications
Test equipment.
