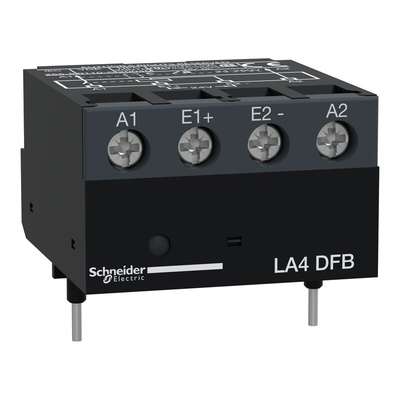

LA4DFB, Schneider Electric Tesys Contactor Interface Module for use with LC1 Series

Amplifier Interface Module

Modules for directly switching a contactor from a low level signal from a PLC output, (Current rating <2mA)
Mounts directly onto the contactor or relay coil terminals. Also provides electrical isolation (solid state device only)
Compatible with new TeSys contactors up to 80kW; 4 - 18.5kW units require coil adaptor stock no. 400-2038

Schneider Electric Contactor Interface Module, 3 Poles, 50g Weight - TeSys LA4D Series - LA4DFB

Use this contactor interface module from Schneider Electric to help regulate your electrical supply effectively. It works together with a high current switching device, so you can conveniently switch a contactor using a low-level signal from a PLC output. Electrical durability of up to 10 million cycles means you can count on the unit to stick with you over time. An LED indicator is on hand to deliver quick and convenient visual diagnostics. For safety, the unit is electrically insulated to protect you against electric shocks. Thanks to its low current consumption of 20mA in operating temperatures of +20°C, you can rely on it to be energy efficient.

Features & Benefits

• Environmentally friendly, as it contains no toxic heavy metals
• IP2X rating indicates protection against objects larger than 12.5mm in diameter and 80mm in length
• Light weight of 50g puts minimal strain on your control circuit

Applications

• HVAC systems
• Automated assembly lines
• Packaging facilities
• Oil and gas industries

Where can I install the component?

You can mount this module directly onto some contactors to help optimise packing space in your control cabinet. Alternatively, simply assemble it on a coil wiring adapter.
