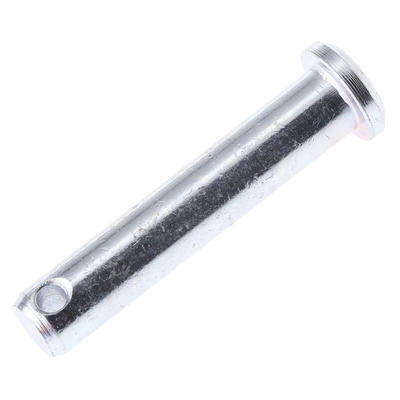

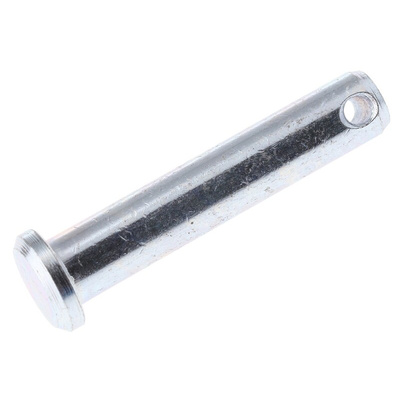

RS PRO 31.75mm Bright Zinc Plated Steel Clevis Pin, 6.35mm Diameter

RS PRO Clevis Pins

Brought to you from the trusted brand RS PRO, a high-quality bright zinc plated clevis pin designed to connect components that rotate or swivel. Steel clevis pins are a type of fastener commonly used on agricultural machinery, motor engines, or as a replacement secure pin for jack stands. They are extremely versatile, easy to install, and locked into place via a retaining clip. Once installed the clevis pin will remain in place and will not work loose under vibration.

Also referred to as

• Link pin


• Hinge pin

Features and Benefits

• Steel clevis pin


• Bright Zinc Plated


• Through-hole


• Resistance to vibration


• Corrosion resistant


• Multiple sizes available separately

Specification

• Mild steel construction


• Imperial Diameter: 3/16 in, 1 /4 in, 5/16 in, 3/8 in


• Length: 1 /2 in, 5/8 in, 3 /4 in, 1 in, 1-1 /4 in, 1-1/2 in

You may also need!

RS PRO offer a selection of bright zinc-plated steel retaining clips compatible with clevis pins. Browse our offer using the improved filters to find you ideal solution.

Working length of pin is less than nominal length

For 3/16 pins subtract 0·145in, for 1/4 pins 0·176, for 5/16 pins 0·224 and for 3/8 pins 0·25 from nominal length to find the working length

• RS stock no: 839-268 has a size designation and wire size (d) of 3/16 in x 1 mm


• RS stock no: 839-274 has a size designation and wire size (d) of in x 1.2 mm


• RS stock no: 839-280 has a size designation and wire size (d) of 5/16 in x 1.6 mm


• RS stock no: 839-296 has a size designation and wire size (d) of 3/8 in x 1.8 mm
