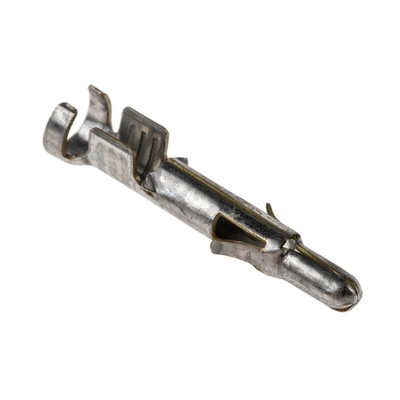

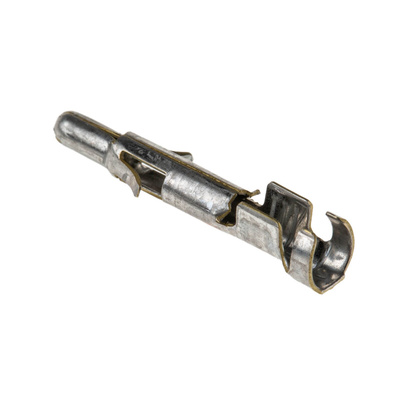

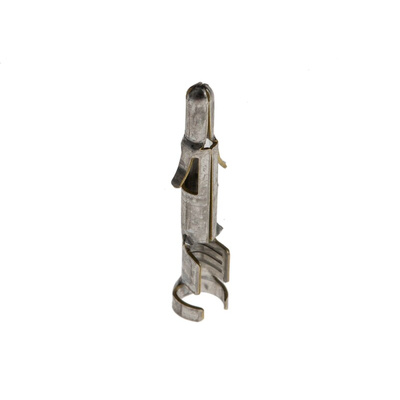

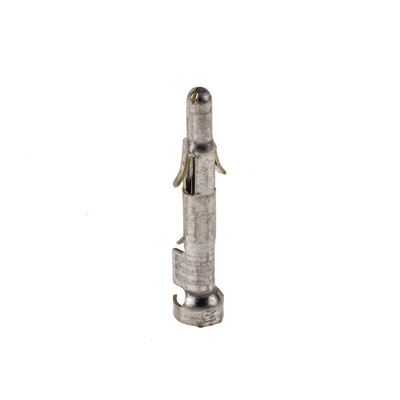

TE Connectivity, Universal MATE-N-LOK Male Crimp Terminal Contact 14AWG 926894-1, Контакты

0849085
Номер производителя: 926894-1Производитель: TE Connectivity
Цена за шт. (норма упаковки 100 шт)
78.00 руб. (С НДС) *
Количество 100+ 1000+ 3000+ 7500+ 15000+
Цена 78.00 руб. 57.00 руб. 54.00 руб. 51.00 руб. 48.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity Universal MATE-N-LOK Contacts

PCB connector contacts are one of the key component parts of printed circuit boards. They are used to complete the circuit by conducting electrical current from the connector to the PCB. The connector will often be contained within a PCB connector housing, especially where multiple connectors are used.

TE Connectivity’s Universal Mate-N-Lok Contacts provide a cost-effective and reliable way of grouping multiple lead connections in computers, business machines, entertainment centres and commercial equipment. These contacts are made of brass with a tin finish and are suitable for crimp termination. Both male and female contacts are available.

Features and Benefits

• Contact Orientation: Straight
• Termination Type: Crimp
• Connector & Contact Terminates To: Wire & Cable

Applications

• Consumer electronics,
• HVAC,
• Commercial,
• Power Supplies.

For MATE-N-LOK Plug Housings see stock number 680-0890
For MATE-N-LOK Receptacle Housings see stock number 115-1761
Positive crimp & poke assembly
For tooling see stock no. 849-114 and die sets see for instance stock no. 849-136

Approvals

UL, CSA

TE Connectivity Universal MATE-N-LOK™ Range

Техническая спецификация
pdf926894-1 Soft Shell Connectors/Soft Shell Contacts Dimensional Drawing
pdfUL E28476
pdfProduct Drawing
pdfDimensional Drawing
Maximum Wire Size mm²:
2мм²
Minimum Wire Size mm²:
0.5мм²
Для использования с:
Universal MATE-N-LOK Connector Housing
Концевая заделка:
Crimp
Максимальный размер провода AWG:
14AWG
Материал контактов:
Латунь
Минимальный размер провода AWG:
20AWG
Покрытие контактов:
Олово
Род:
Male
Серия:
Universal MATE-N-LOK
