KSU0405, Kopex Flexible Conduit, 20mm Nominal Diameter, Stainless Steel, Metal, Кабелепровод

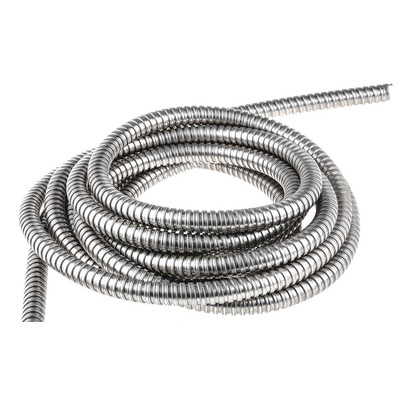

Kopex KSU Stainless Steel Conduit

A high quality uncovered general purpose flexible conduit with a very high temperature range. Constructed from helically wound 316 stainless steel it is particularly suitable for corrosive environments, the flexible design and material mean it's ideal for constantly vibrating or flexing applications in the pharmaceutical, security, chemical and architectural industries. By nature of the material it is LFH, Flame Retardant and Zero Halogen rated.

Appropriate fixed straight Fittings in Metric and PG threads are available:

852-407 10mm conduit use 852-457 10mm PG7 straight fitting
248-3176 10mm conduit use 852-457 10mm PG7 straight fitting
852-413 12mm conduit use 852-463 12mm PG9 straight fitting
852-429 16mm conduit use 852-479 16mm M16 straight fitting
852-435 20mm conduit use 852-485 20mm M20 straight fitting
248-3182 20mm conduit use 852-485 20mm M20 straight fitting
852-441 25mm conduit use 852-491 25mm M25 straight fitting
248-3205 25mm conduit use 852-491 25mm M25 straight fitting

-50°C to +350°C operating temperature
Crush resistance 1250N and over
IP40

Kopex Conduit, 21.7kg/100m Average Weight, 32mm Minimum Bend Radius - KSU Series - KSU0405

Need a flexible shield to protect cables in your workplace? Trust this Kopex conduit to get the job done. Thanks to its minimum bend radius of 32mm, you'll have no trouble installing it around corners or in complex setups. It's made of durable stainless steel that won't give in to corrosion or impact, making it a reliable choice for rugged industrial settings. Thanks to a length of 5m, there's lots of it to go around for numerous jobs or long cable runs.

Features & Benefits

• UV-resistant to handle exposure to sunlight without deterioration, making it suitable for outdoor use
• 20mm conduit size to accommodate small and medium cables
• Easy installation doesn't need complex tools, saving time and effort
• IP40 rating indicates that it can withstand objects larger than 1mm

Applications

• Chemical laboratories
• CCTV and security equipment
• Warehouses and distribution centres

In what temperatures can I use this conduit safely?

This conduit from Kopex has a wide operating temperature range of -50°C to +350°C so you can rest assured it stands up to the most extreme environments.

KSU Conduit Technical Data Sheet
