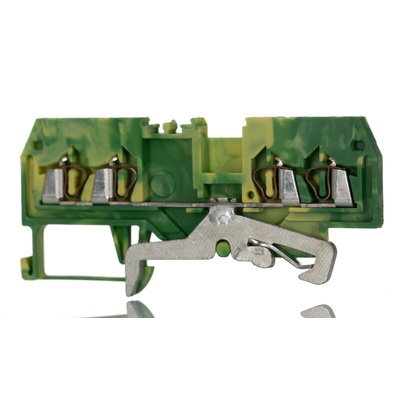

279-837, Wago 279 Series Green/Yellow Earth Terminal Block, 1.5mm², Single-Level, Cage Clamp Termination

Protective terminal block for 4 conductors

Protective terminal blocks for 4 conductors (2 input and 2 output) for mounting on DIN-type TS 35 rails. These terminals feature cage clamp spring contact technology for ultra-quick connection.
These terminals are front-wired.
These terminal blocks can receive end plates designed for standard terminal blocks.

870 Series

Compact screwless DIN rail mount terminals suitable for use with TS35 ’Top Hat’ rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.

Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)

4 Conductor Ground Terminal Block
