2281131, Phoenix Contact FLKM-D15 SUB/S Series 15-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 2.5A, Модуль

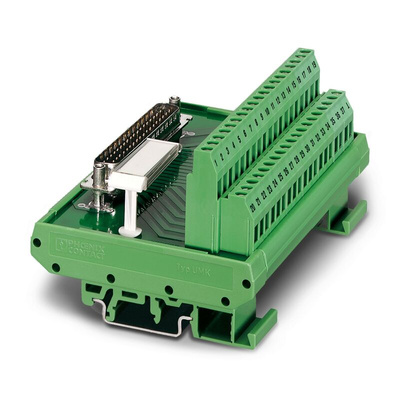

Phoenix Contact D-Sub Interface Modules

A range of VARIOFACE modules with screw connection and D-Subminiature pin strips from Phoenix Contact designed to mount on NS 35/7.5 or NS 32 DIN rails. The screw terminal interface modules with connectors are suitable for interfacing electrical cabling to I/O cards and electronic equipment.

Features and Benefits

• Suitable for Cable CSA: (Solid)0.2 to 4mm², (Stranded)0.2 to 2.5 mm²
• IP 20 rating
• Available with 9 to 37 contacts
• Male and female versions available
• Operating temperature range of -20°C to +50°C

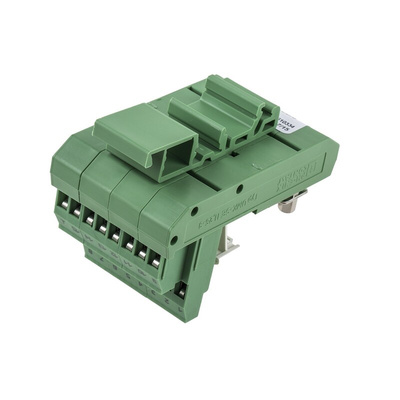

Phoenix Contact FLKM-D15 SUB/S Series Interface Module, D-sub Connector, Male - 2281131

This Phoenix Contact interface module is designed to cater to the needs of professionals in the automation, electronics, electrical, and mechanical industries. With a current rating of 2.5A and a test proof voltage of 800V, this module ensures reliable performance in various applications. The FLKM D15 sub/S series makes this interface module a dependable choice for your technical requirements.

Features & Benefits

• Male connector interface with D sub connector for easy installation
• DIN rail mount interface module for secure positioning
• Dimensions of 45 x 58.5 x 77 mm, providing a compact solution for space constrained setups
• Maximum operating temperature of +50°C and minimum operating temperature of 20°C for versatile usage

Applications

• Ideal for use in industrial automation setups
• Suitable for electronic control systems
• Perfect for electrical distribution panels

Can it withstand temperatures outside the recommended range?

The Phoenix Contact interface module is designed to operate within a temperature range of -20°C to +50°C, ensuring reliable performance in various environments.

Is this module suitable for industrial applications?

Yes, the interface module is specifically crafted for industrial automation, making it a perfect choice for your industrial needs.

Will it work with different wire sizes?

The module is compatible with wire sizes ranging from 24 AWG to 12 AWG, providing flexibility in installation options.

Varioface Module Data Sheet

Line Drawing - 2281131
