2281144, Phoenix Contact FLKM-D25 SUB/S Series 25-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 2.5A, Модуль

Phoenix Contact D-Sub Interface Modules

A range of VARIOFACE modules with screw connection and D-Subminiature pin strips from Phoenix Contact designed to mount on NS 35/7.5 or NS 32 DIN rails. The screw terminal interface modules with connectors are suitable for interfacing electrical cabling to I/O cards and electronic equipment.

Features and Benefits

• Suitable for Cable CSA: (Solid)0.2 to 4mm², (Stranded)0.2 to 2.5 mm²
• IP 20 rating
• Available with 9 to 37 contacts
• Male and female versions available
• Operating temperature range of -20°C to +50°C

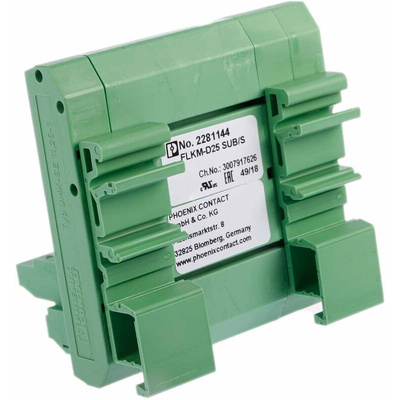

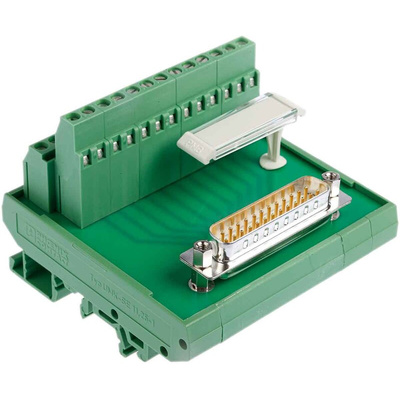

Phoenix Contact 25 Pole D-Sub Connector, Male Interface Module - FLKM-D25 SUB/S - 2281144

If you need a reliable and safe way to link up electronics with other components on your circuit boards, choose this D-sub connector from Phoenix Contact. It's designed to clip onto DIN rails for easy mounting and you can secure your electrical connections with a simple screw termination.
The unit's IP20 ingress protection rating indicates that it's touch-proof and resistant to larger particles, so you can handle it safely without affecting your equipment's functioning. To protect your circuitry in case of a power surge, it has a high surge voltage rating of 1.2 kV.
This product has an operating temperature range of -20°C to +50°C, making it suitable for use in a wide variety of demanding environments. You can use it for interfacing electrical cabling to I/O (input/output) cards and electronic equipment, as well as other applications in prototyping.

• Cable cross-sectional area of 0.2 to 4 mm²
• Current rating of 2.5 A
• Male gender
• 25 contacts
• Dimensions of 78.8 (length) x 58.5 (width) x 77 mm (depth)
• Test proof voltage of 800 V AC
• Voltage rating of 25 V AC, 60 V DC
• Wire size of 24 to 12 AWG

Datasheet 2281144
