2281186, Phoenix Contact FLKM-D9 SUB/B Series 9-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 2.5A, Модуль

Phoenix Contact D-Sub Interface Modules

A range of VARIOFACE modules with screw connection and D-Subminiature pin strips from Phoenix Contact designed to mount on NS 35/7.5 or NS 32 DIN rails. The screw terminal interface modules with connectors are suitable for interfacing electrical cabling to I/O cards and electronic equipment.

Features and Benefits

• Suitable for Cable CSA: (Solid)0.2 to 4mm², (Stranded)0.2 to 2.5 mm²
• IP 20 rating
• Available with 9 to 37 contacts
• Male and female versions available
• Operating temperature range of -20°C to +50°C

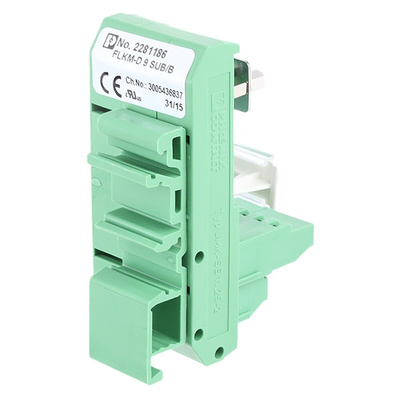

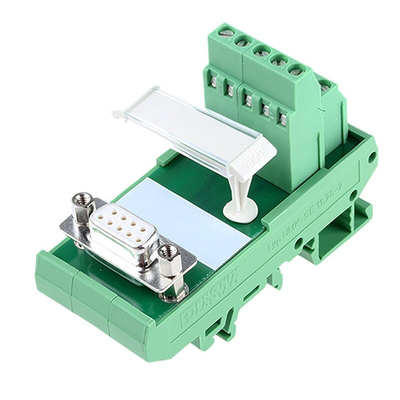

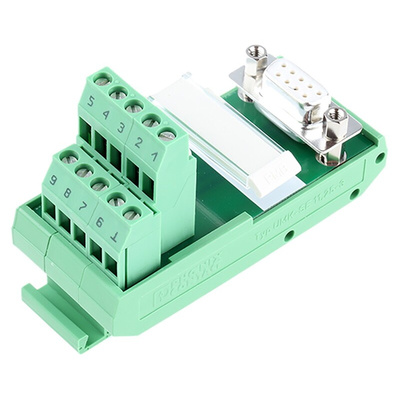

FLKM-D 9 SUB/B D-sub connection - 2281186

This D-sub connection from Phoenix Contact is a DIN rail mountable connection and is designed to be used with Phoenix's range of VARIOFACE premium connectors. The VARIOFACE system is a range of high-quality high-position plugs to make an effortless cabinet and a far more efficient one. The 2281186 has 9 positions and can be mounted on either NS 35/7.5 or NS 32 rails. The terminal blocks on the module are suitable for interfacing electrical cabling to I/O cards and PCB.

Features and benefits:

• 9 Positions (Terminal blocks) & 9 Pins (D-sub connector)


• Accepts wire from 0.2mm2 up to 4mm2


• Mounted on a DIN rail and small in size to keep things as minimal as possible for space-saving


• Part of Phoenix's VARIOFACE range

2281186 Datasheet

2281186 Application note
