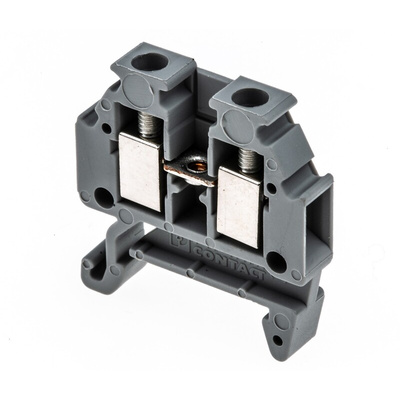

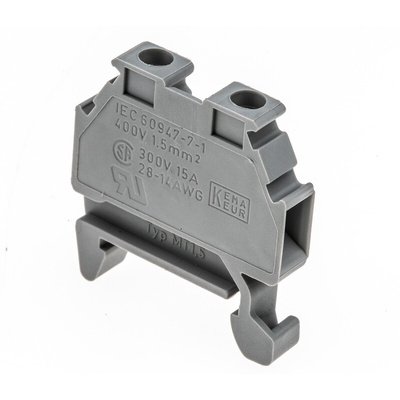

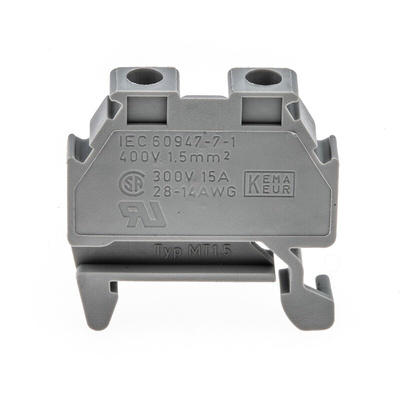

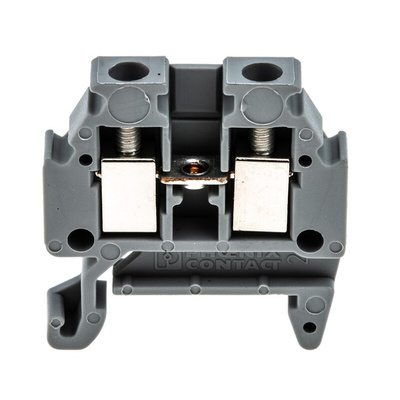

3100305, Phoenix Contact MT 1.5 Series Grey DIN Rail Terminal Block, 0.14 → 1.5mm², Single-Level, Screw Termination

Standard and Earth Terminals

These compact terminals from Phoenix Contact allow for complex switching tasks in confined spaces. Mounted on TS15 RS 467-349. These terminals have a pitch of just 4.2mm.
End clamp is available to purchase separately.

Note

The cable csa detailed applies to both solid and stranded wire construction.

Phoenix Contact DIN Rail Terminal Block, 400V Voltage Rating, 17.5A Current Rating - MT 1,5 - 3100305

To tie up wiring jobs in tight spots, pick this DIN rail terminal block from Phoenix Contact. At just 4.2mm wide, it's a sure fit in small enclosures. You can run two conductors through it, keeping your layout simple and saving even more space. The versatile connector works with ferruled and solid wires between 26 and 16AWG.
Screw terminals hold connections tightly in place, helping to prevent accidental disconnections and cut downtime out of the equation. They also make it child's play to loosen and tighten wires during maintenance. Thanks to its 400V voltage rating, the component packs the muscle to handle demanding industrial feeds. Chemical-resistant PA insulation protects your links in harsh environments and safeguards you against electric shocks when you're handling the block. Use it in your power distribution setups, factory control panels and commercial appliances.

Features & Benefits

• Convenient, tool-free installation by simply snapping the unit onto a 15mm DIN rail
• UL 94-V0 rating indicates it won't burn for longer than 10 seconds to boost fire safety
• IEC 60947-7-1 approval means it has passed quality and safety testing for industrial use
