FT91012699N, Weller Zero Smog EL Kit 1, 230V ac Solder Fume Extractor, Fine Dust Filter M5; HEPA Filter H13 & Wide Band Gas Filter,

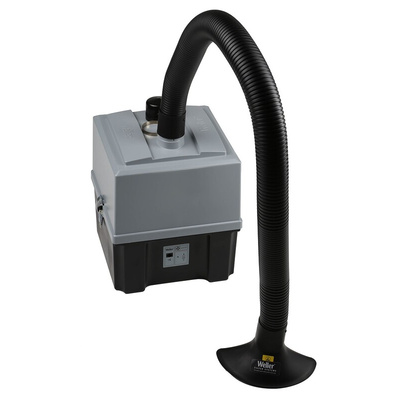

Weller Zero Smog EL Kit 1 Soldering Fume Extraction Unit.

The Weller zero smog EL extraction kit is the perfect cost-efficient solution covering small soldering applications. The fume extraction kit has a very high-quality long file brushless turbine which produces a generous suction volume with a high level of extraction power suction volume. With the Zero Smog fume extraction kit you have an on/off switch which helps to save energy and included is an electronic filter monitor complete with an alarm. This fume extractor can operate at up to two work places providing you as the user with maximum health protection. Easily adjustable and easy to install with flexible easy-click 60 arms the Zero Smog fume extraction unit is ready to use in less than 4 minutes.

FEATURES and BENEFITS:

• For up to two work-places


• Changeable medium fine dust pre-filter M5


• Active carbon foam for effective gas cleaning


• Portable


• Place under or next to a bench-top


• Easy filter change


• Large HEPA H13 filter surface


• Longer filter lifetime


• 4 -speed adjustment for power regulation


• Additional health protection


• Filter monitoring


• Filter alarm


• Maintenance-free brushless EC turbine


• Easy-Click system


• Quick and easy to install

• Zero Smog EL Fume Extraction unit


• 1 x flexible and adjustable arm (OF15, 1.5 meters long and a diameter of 60mm)


• 1 x Funnel nozzle ALFA (225 x 100mm)


• 1 x Clamp for securing the fume arm

• Width 335 mm


• Depth 360 mm


• Height 445 mm


• Weight 8.6 kg

• Pre-filter mat class M5


• Particle filter H13


• Active carbon filter (granular activated effective gas filtering).


• Extracts and filters Solder Fumes

• Voltage 220 to 240 V


• Heating output 120 VA

• Maximum 2500 pa


• Capacity 150 m3/h
