REC30-2412SZ, Recom REC30-Z DC-DC Converter, 12V dc/ 2.5A Output, 9 → 36 V dc Input, 30W, Through Hole, +85°C Max Temp -40°C, Преобразователь

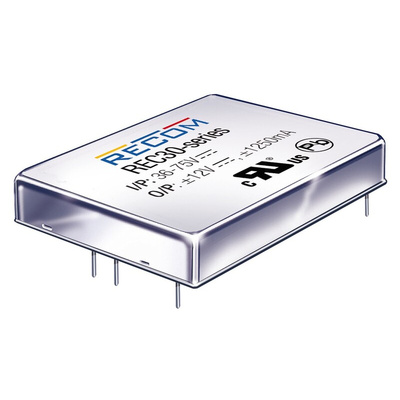

Recom REC30 Series Isolated DC-DC Converter

Recom REC30 series have been designed for use within higher power industrial applications. Boasting both single and dual regulated output functionality within a compact 2" x 1" package.
The REC30 series also comes equipped with remote on/off control as standard to provide flexibility within applications. Another benefit of the REC20 series is track loss voltage compensation within the higher current output variants of the range.

Features and Benefits

•Highly efficient range of DC-DC converters, boasting up to 90.5% efficiency.
•External ON / OFF control for application flexibility.
•Isolated to 1.6 k V dc.
•Continuous short circuit protection.
•6-side shielding.

Standards

IEC EN60950-01, UL60950, CSA C22.2 No.60950 & EN55022 Certified.

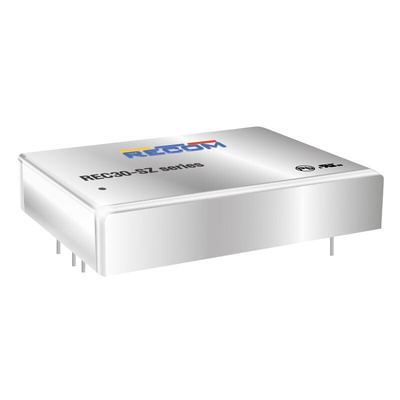

RECOM DC-DC Converter, Remote On-Off Switching, Short-Circuit and Overvoltage Protections - REC30-SZ Series - REC30-2412SZ

When you need a power and conversion solution that offers medical-grade isolation, go for this DC-DC converter from RECOM. It safely steps down voltages in a 4:1 range, taking inputs of 9 to 36V DC and giving you a stable, regulated output of 12V DC that you can use to supply energy in high-power industrial applications. As the unit offers isolation up to 1.6kV DC, you can trust it to protect you and your equipment from the harmful effects of electrical surges. Line and load regulation of up to ±0.2% and ±0.5% respectively mean you get tight control over input and output values, so you can easily tailor this converter to suit your setup.

Features & Benefits

• Mean time between failures of 1,541,000 cycles for longevity
• Vibration resistant, so suitable for use around moving industrial machinery
• Typical start-up time of 30ms for fast supply of an electrical load to connected equipment
• Remote On-Off switching for control of your converter from a distance
• Typical efficiency of 88.5% so wastes little energy as heat

Applications

• Medical devices
• Renewable energy
• Electric vehicles

How safe is this converter?

This converter's continuous short-circuit and overvoltage protections mean you can trust it to keep you safe from the harmful effects of excess current.
