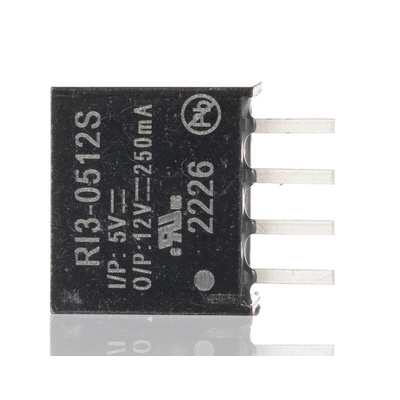

RI3-0512S, Recom RI3 DC-DC Converter, 12V dc/ 250mA Output, 5 V dc Input, 3W, Through Hole, Преобразователь

Recom RI3 Series Isolated DC-DC Converter

The RI3 series of isolated DC-DC converters from Recom have been designed for use within space-restricted applications. Designed for 3 W conversion applications, but have the same footprint as the Recom RI2 series 2 W converters.
The RI3 series also provides up to 3 k V dc I/O isolation, providing up to 90% efficiency making them suitable for a wide range of industrial applications.

Features and Benefits

•Industry standard pinout for easy installation.
•3 W in a SIP4 package.
•Wide operating temperature range of -40°C to 100°C.
•1 to 3 kV dc isolation.

RECOM DC-DC Converter, Silicone Potting, 87% Efficiency At Full Load - RI3 Series - RI3-0512S

Searching for a durable power distribution solution for your electrical components? Give the job to this DC-DC converter from RECOM. Thanks to its robust polyamide housing, this piece of kit can tough it out through mechanical impact and abrasion without breaking a sweat, so it's your best bet for rugged industrial settings. Don't let sudden voltage spikes catch you unawares – this unit has an isolation voltage of up to 1kV DC to create an effective safety barrier between your input and output.

Features & Benefits

• Wide operating temperature range between -40°C and +85°C for use in demanding conditions
• Through-hole mounting achieves a permanent connection that remains stable even in vibrating settings
• Mean time between failures of 4,395,000 hours for long-term performance
• Low current consumption of 250mA for energy-efficiency

Applications

• Consumer electronics
• Medical equipment
• Mechanical workshops

Why is it important to know the efficiency of your DC-DC converter?

The efficiency of a DC-DC converter tells you how much energy it loses to heat. This unit has 87% efficiency at full load. Not only does this mean that very little energy is going to waste, it also eliminates the need to attach a heatsink to it during operation.

Recom Isolated DC/DC Converter

Recom RI3 Series Datasheet
