RI3-2405S, Recom RI3 DC-DC Converter, 5V dc/ 600mA Output, 24 V dc Input, 3W, Through Hole, +85°C Max Temp -40°C Min Temp, Преобразователь

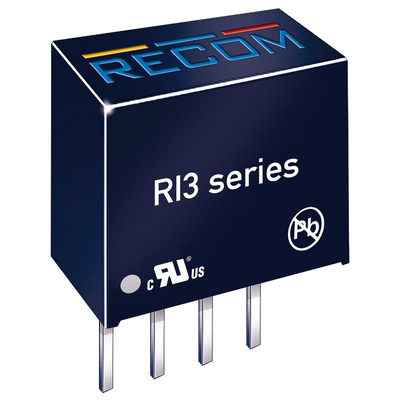

Recom RI3 Series Isolated DC-DC Converter

The RI3 series of isolated DC-DC converters from Recom have been designed for use within space-restricted applications. Designed for 3 W conversion applications, but have the same footprint as the Recom RI2 series 2 W converters.
The RI3 series also provides up to 3 k V dc I/O isolation, providing up to 90% efficiency making them suitable for a wide range of industrial applications.

Features and Benefits

•Industry standard pinout for easy installation.
•3 W in a SIP4 package.
•Wide operating temperature range of -40°C to 100°C.
•1 to 3 kV dc isolation.

RECOM DC-DC Converter, 86% Efficiency, 100mVp-p Ripple and Noise - RI3 Series - RI3-2405S

Looking for a space-saving power and conversion device for your harsh industrial workspace? This DC-DC converter from RECOM will do the job. It safely steps down inputs of 24V DC to give you a 5V DC output that's practical for industrial tasks. The versatile and robust unit delivers full power output over its entire operating temperature range of -40°C to +85°C, so you can trust it's an effective choice to perform in harsh environments. Compact dimensions of 11.5 (L) x 7.6 (W) x 10.2mm (H) let you save space on your board.

Features & Benefits

• Low ripple and noise of 100mVp-p lets you set stable output voltages to suit connected devices
• Free air convection cooling means no fan, so less maintenance
• Isolation of 1kV shields you from voltage surges
• Mean time between failures of >
4 million cycles for durability
• Typical efficiency at full load of 86%, so wastes little energy in the form of heat

Applications

• Robotics systems
• Automated guided vehicles
• Telecommunications

What's the benefit of a SIP4 package?

This converter's SIP4 package follows an industry-standard size and pin-out configuration. This makes it easy to fit into crowded boards and simple to install using a secure through-hole mounting method.
