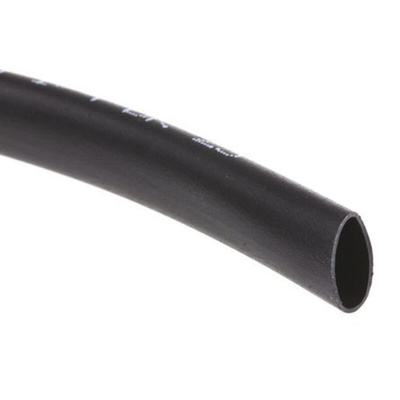

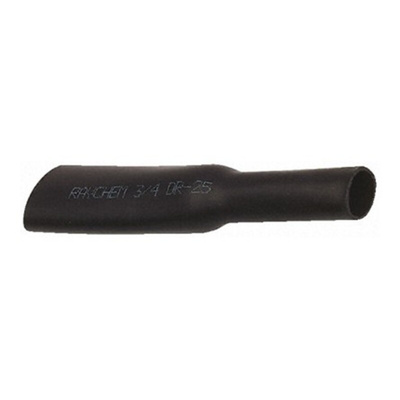

DR-25-TW-1/8-0-SP, TE Connectivity Heat Shrink Tubing, Black 3.2mm Sleeve Dia. x 150m Length 2:1 Ratio, DR-25-TW Series

TE Connectivity Heat Shrink Tubing

The TE Connectivity DR-25-TW series, heat shrink tube is 150m long. It protects wires and cables against damage from chemicals, abrasion and fluids. The thin wall design allows the tubing to be used where space and weight are limited. It is ideal for high-temperature environments as it is specially designed for long term heat resistance and flame retardance.

Features and Benefits

Sleeve diameter is 3.2mm
Shrink diameter is 1.6mm
Flexible harness tubing
Heavy-wall
Elastomer material tubing
Long term fluid and heat resistance
Offers excellent protection and insulation
Performs well under long-term heat exposure
Provides strain relief
The tubing is printed with the product description and size
Use with system 25 range products for a complete cable harness system
Operating temperature ranging between -75°C and 150°C

Applications

Motorsport cable harnesses
Protecting cable
Wiring harnesses on military ground vehicles

Certifications

ELV certified
EU certified
RK-6008/2
VG 95343 part 5 type D

Datasheet
