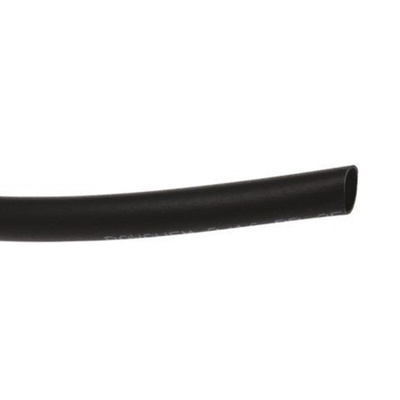

DR-25-TW-3/16-0-SP, TE Connectivity Heat Shrink Tubing, Black 4.8mm Sleeve Dia. x 150m Length 2:1 Ratio, DR-25-TW Series

TE Connectivity Heat Shrink Tubing

The TE Connectivity DR-25-TW series black 150m heat shrink tubing has 2:1 shrink ratio. It protects wires and cables against damage from chemicals, abrasion and fluids. The thin wall design allows the tubing to be used where space and weight are limited. It is ideal for high-temperature environments as it is specially designed for long term heat resistance and flame retardance.
Heat-shrinkable, flexible, chemical and abrasion resistant tubing:
Flame-retardant system 25 tubing shrink ratio has a 2:1 shrink ratio. It provides an optimum, high-temperature fluid resistance and long-term heat resistance. It offers resistance to aviation and diesel fuels, hydraulic fluids and lubricating oils. It is particularly suitable as a jacketing material for vehicle cables and harnesses. It is also well suited for the demands of motorsport cable harnesses. When used in conjunction with system 25, heat-shrinkable moulded shapes and S1125 high-performance adhesive
this product provides a complete cable harness system.

Features and Benefits

Sleeve diameter is 4.8mm
Shrink diameter is 2.4mm
Flexible harness tubing
Heavy-wall
Elastomer material tubing
Long term fluid and heat resistance
Offers excellent protection and insulation
Performs well under long-term heat exposure
Provides strain relief

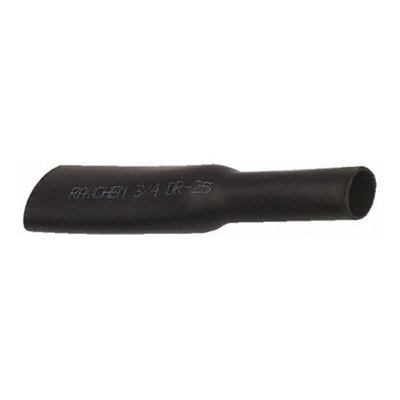

The tubing is printed with the product description and size
Use with system 25 range products for a complete cable harness system
Operating temperature ranging between -75°C and 150°C

Applications

Motorsport cable harnesses
Protecting cable
Wiring harnesses on military ground vehicles

Certifications

ELV certified
EU certified
RK-6008/2
VG 95343 part 5 type D
