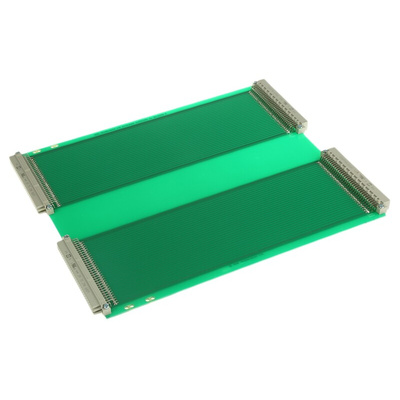

RS PRO 96 Way Double Sided DIN 41612 Extender Board Extender board FR4 281.6 x 233.4 x 1.6mm

Eurocard extensions

Range of extensions for testing single- or double-height Eurocards, depth 160 or 220 mm, with type B or C DIN 41612 connectors.
The ejector mechanism situated at the front supports the board under test.
The board circuits are thus entirely clear of the chassis, considerably facilitating their inspection and verification.
To facilitate fixing of oscilloscope probes, the extension boards can be fitted with terminals (single boards are supplied with 20terminals and doubles with 40).
This option is not available on extensions with 96 // 96 contacts.

PC / VME Bus Boards

PC Compatible Prototyping Boards

Prototyping boards manufactured from epoxy glass material to BS 4584 part 3 or 16. Card thickness is 1.6 mm. Copper is 305 g/m² (1 oz/ft²). Edge connector fingers are gold plated to a thickness of 1.5 microns. 1.0 mm (0.040 in.). Diameter holes are pre-drilled on a 2.54 mm (0.1 in.) matrix.

Microboard Pattern

Incorporates, on the component side of the card, a colander ground plane for maximum screening and glitch free high speed operation, and complete solder mask protection.

Datasheet
